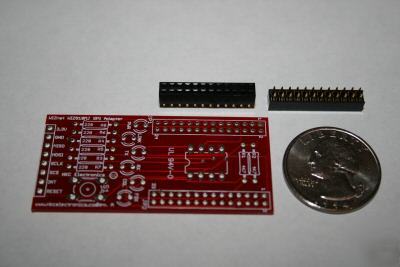

Picture of the adapter with the WIZ810MJ Module
Picture of the adapter with the WIZ810MJ Module
WIZnet WIZ810MJ module to breadboard SPI Adapter
Simple adapter for the popular WIZnet WIZ810MJ product from WIZnet. The WIZ810MJ module uses a hard-to-find 2mm spaced pin header. This adapter has sockets for the 2mm pins and standard 0.1" pins for plugging the module to standard protoboards and breadboards.
a) 2mm WIZ810MJ module female sockets
b) SPI mode and reset pins pulled-up with 4.7KOhm resistors
d) 6 LEDs (Power, Link Speed, RX, TX, Collision, FDX) with corresponding resistors for debugging purposes
e) 2.54mm spaced header for breadboard or protoboard connectivity
The reset switch, 6 LEDs and 6 LED resistors are optional.
This adapter is for using the WIZ810MJ module in SPI mode.
The WIZ810MJ module has 2 x 28-pin sockets. Pins 25-28 are unused. The adapter has 28-pin socket footprint, but 2 24-pin sockets are provided.
WIZ810MJ Module to DIP Adapter
WIZnet Module to breadboard Adapter PCB
RequirementsSoldering iron, solder and soldering skills, 2 x 4.7 kohm 1/4W resistors.
It is optional to install 6 3mm LEDs, 6 LED resistors (330ohm, 220ohm), reset tactile switch.
