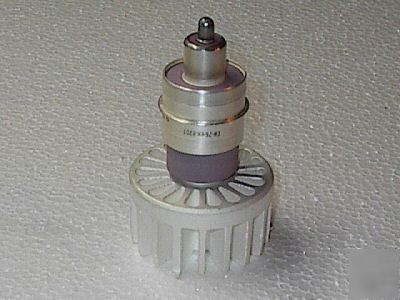

The GI-7B (GI-70B) microwave triode operates as an oscillator and an amplifier in continuous-wave or pulsed mode with anode modulation in the centimetric and decimetric wavelength ranges.The triode is available in two variants differing in the type of cooling: the GI-7B with a heat sink for forced air cooling and the GI-70B with no heat sink for other systems of cooling.
Cathode: indirectly heated, oxide-coated.
Height: 110.5 mm with heat sink, 97 mm with no heat sink.
Diameter: 65 mm with heat sink.
Mass: at most 330 g with heat sink, 170 g with no heat sink.
OPERATING ENVIRONMENTAL CONDITIONS
Multiple impacts with acceleration, m/s² 343
Ambient temperature, °C -60 to +100
Relative humidity at up to +40 °C, % 98
BASIC DATA ELECTRICAL PARAMETERS
Mutual conductance (at anode voltage
1.2 kV, grid voltage change by 1 V,
anode current 150 mA), mA/V 20-26
Penetration factor (at anode voltage
1.3 kV, anode voltage change 200 V,
anode current 150mA), % 1.2-1.8
Operating point (negative grid voltage at
anode current 150 mA), V 12.5-7.5
Interelectrode capacitance, pF:
in CW operation (at anode voltage
wavelength 18.5cm), W, at least 30
in pulsed operation (at peak anode
voltage 9 kV, anode current 7.5 A,
wavelength 10 cm,1/pulse duty factor 1,
400-150, pulse duration 3-10 ?s),
