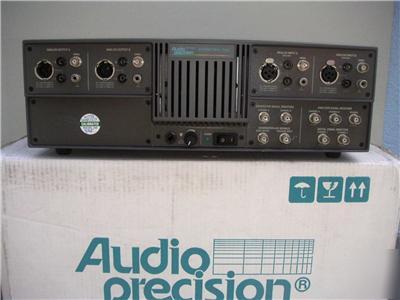

Audio Precision Analog Audio Analyzer Sys-2022
Audio Precision Analog Audio Analyzer Sys-2022G
System Two with APIB and GPIB Interface
Exceptionally Clean Late Production Unit
Fully Adjusted to Specification Design Center, Performance Tested to AP Standards, and Warranted
Two Channel Analog Generator and Two Channel Analyzer
Dual Channel Analog 40, 150 or 600 Ohm Z Output 10 microvolts to 26.67 volts RMS
Each Analog GEN Channel has Independent Control over Amplitude, Polarity, and Z
Analog Sine Sweep from 10 Hz to 204 kHz w/Analog Stimulus
Flatness +/- 0.008 dB below 20 kHz
Amplitude Accuracy +/- 0.06 dB at 1 kHz
Residual THD+N 20 Hz-20 kHz 0.0004%
Analog Analyzers have -108 dB (0.0004%) Noise & Distortion Floor (22 kHz BW)
Analog Analyzer Bandwidth >500 kHz
Analyzer Input Voltage Range 5 uV to 230 Volts Peak
Analyzer Noise less than 1 microvolt
Internal Amplified Speaker to Monitor Signals
Contact me for full specifications by email
The World Standard for Audio System Measurements
Test Avionics, Audio Processors, Broadcast Links, PA Systems, Vacuum Tube Electronics, Amplifiers, Preamplifiers, Low Noise Amplifiers
Seven Option Filter Slots Available
Frequency Response, Crosstalk, Noise, Distortion (Harmonic), Common-Mode
Total Harmonic Distortion Measurements
Input/Output Linearity Testing
Program Automated Test Procedures for QC using Included AP Basic Software
Floating Balanced XLR Inputs or Unbalanced Banana Inputs with 150, 600 Ohm or 100 kOhm Input Z Selectable
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
You need to provide a Windows 95 to XP PC with one of the APIB Interface cards or USB module to Control the AP Analyzer
Questions? Call Dr. Marshall Buck Toll-Free at (***)-798-8324 9 AM to 5 PM PDT
Includes Interface Cable, Power Cord and APWin 2.24 Software
(Software is also downloadable from AP)
Audio Precision PCI Interface Card Available from me or Audio Precision for $330
Burst Generator, IMD/IMA Options Available Installed for Extra Fee
Contact Me for Filters and other Options
CD-ROM Included with Tests and Macros to Exercise Many Capabilities of this Fine Instrument
Disc 1 of AP Testing Fundamentals Tutorial DVD Included
