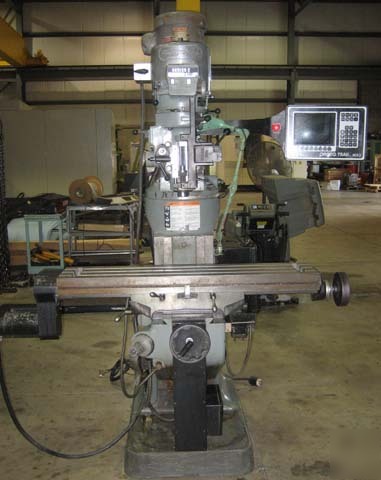

30" CNC VERTICAL MILL, Bridgeport PROTOTRAK M
30" CNC VERTICAL MILL, Bridgeport PROTOTRAK M
MODEL: SERIES I, S/N: 238077, NEW: 1983
TABLE TRAVEL (X-AXIS) .................. 30"
SADDLE TRAVEL (Y-AXIS) ................. 12"
QUILL TRAVEL ........................... 5"
KNEE TRAVEL (Z-AXIS) ................... 16"
RAM TRAVEL ............................. 12"
MINIMUM THROAT DISTANCE ................ 6.75"
MAXIMUM THROAT DISTANCE ................ 18.75"
TABLE TO SPINDLE NOSE GAGE LINE ........ 2.5"
MAXIMUM WEIGHT OF WORKPIECE ............ 750 LBS
SIZE ............................. 9" x 42"
T-SLOT, NO. & SIZE ............... 3 ON 2.5" CENTERS
MAXIMUM HEIGHT ABOVE FLOOR ....... 47.25"
SPINDLE TAPER .......................... R8
SPINDLE DRIVE SPEED, INF. VARIABLE ..... 60-500 RPM (LOW)
............................ 500-4200 RPM (HIGH)
POWER QUILL FEED ....................... .0015"/REV.
MANUAL ADJUSTMENT ...................... .003"/REV.
............................ .006"/REV.
MILD STEEL (MANUAL) .................... .75" DIAMETER
MILD STEEL (POWER) ..................... .375" DIAMETER
MILLING CAPACITY - MILD STEEL .......... 2 CU."/MIN
MILD STEEL ............................. TO 6" DIAMETER
SPINDLE DIAMETER ....................... 1.875"
QUILL DIAMETER ......................... 3-3/8"
QUILL TRAVEL ........................... 5"
DIMENSIONS: 60" (L-R) X 80" (F-B) X 82" (H)
- PROTO TRAK MX2 2-AXIS CONTROL
- ELECTRICS: 220 VOLTS, 3 PH, 60 CYC
Machine Location: BETHLEHEM, PA
