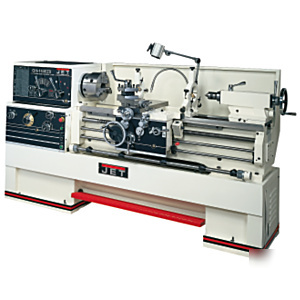

14" ZX SERIES LARGE SPINDLE BORE LATHES
Uniquely designed exclusively by JET
ISO 9001 certified manufacturer
3-1/8" bore spindle is supported by two tapered and one ball bearing
Chrome molybdenum headstock gears are hardened, ground, and shaved
Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required
Carriage Feature one-shot lubrication and Turcite B on bed sliding surfaces
T-slotted compound slide featuring a four-way tool post
One-piece cast iron base absorbs vibration allowing heavier cuts
High quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground
Removable gap allows up to 23-5/8" diameter work
Five position automatic carriage stop increases productivity
Attractive chrome control levers, dials, and knobs complete this impressive package
Tolerance test certificate included
10" 3-jaw scroll chuck with top reversing jaws
Fully integrated coolant system
Full length splash guard and coolant return
Articulating halogen work lamp
Centrally located controls with jog button
Compound Slide Travel (in.) 5-1/8
Distance Between Centers (in.) 40
Follow Rest Capacity (in.) 1/2–3-1/2
Number of Longitudinal and Cross Feed Rates 122
Overall Dimensions 97-1/2 x 40 x 46-7/8
Range of Cross Feeds (IPR) .0006–.0365
Range of Inch Threads (TPI) 1-5/8–72
Range of Longitudinal Feeds (IPR) .0015–.0913
Range of Metric Threads .05–20
Range of Spindle Speeds (RPM) 42–1,800
Spindle Taper W/ Sleeve MT-7 (MT-5)
Steady Rest Capacity (in.) 3/8–7
Swing over Cross Slide (in.) 7-5/8
Swing Through Gap (in.) 23-5/8
Tailstock Spindle Travel (in.) 5
Taper in Tailstock Spindle MT-4
