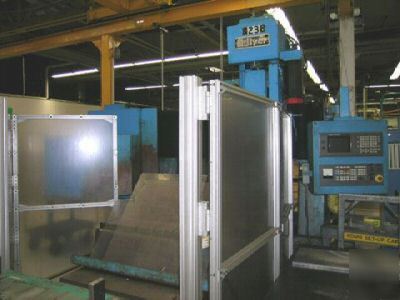

Liberty Machinery Company-You are looking at a 60"-X, 48"-Y, 18"-Z,Hillyer 600,Rebuilt & Retrofit,30 Pos. ATC,Cat 50,Fanuc 18M-Serial No. 395Condition - UsedRebuilt & Retrofit - 1999
Clearance between Carriage & Table 24"
Distance, Spindle Nose to Table - Maximum 32-1/2"
Distance, Spindle Nose to Subtable - Minimum 6-1/2"
Weight of Workpiece - Maximum 6,000 Lbs.
Table Working Surface 40" x 64"
Spindle Speed Range 40 - 2500 RPM
Spindle Speeds, Number Infinitely Variable
Spindle Drive Motor (Constant Torque) 20 HP
Axis Drive Motors X, Y & Z Axes Fanuc
Axis Drive Feed Rate 0.25-300 in/mm
Axis Drive Rapid Traverse Rate 300"/Minute
Axis Drive Positioning Accuracy (Overall) +/- 0.001"
Axis Drive Repetitive Accuracy 0.0005"
Axis Drive System Resolution 0.0001"
Drilling Capacity in AISI 1020 Steel 2-1/2"
Milling Capacity in AISI 1020 Steel 15 Cu. In/Minute
Tapping Capacity in AISI 1020 Steel 2" Diameter
Boring Capacity in AISI 1020 Steel 5" Diameter
Electrics 230/460, 3 Ph, 50/60 Hz
Floor Space Required 166" x 158"
Approximate Weight 22,000 Lbs.
-EQUIPPED WITH:Fanuc Series 18-M Control
Fanuc C Series AC Servo Amplifiers
Remote Operator Control Pendant
Bijur Oiler -*Preliminary Specification Subject to Verification.-Click Pictures To Enlarge:
