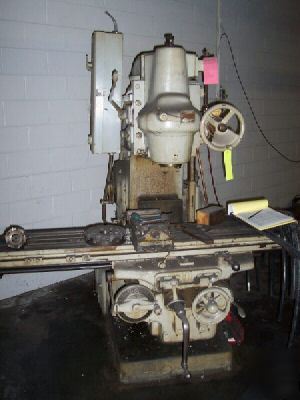

#3H KEARNEY & TRECKER VERTICAL MILL
New 1944, Serial No. 8-4653, Size 3, Model H
Table Dimensions (Overall), W x L....... 13-1/2" x 64"
Table Working Surface, W x L............ 13-1/2" x 64"
Longitudinal Table Travel (X-Axis)...... 34"
Cross Saddle Travel (Y-Axis)............ 12"
Vertical Knee Travel (Z-Axis)........... 14"
Vertical Spindle-Head Travel (Z-Axis) 6"
Spindle-Face to Table, Maximum.......... 19-1/16"
Spindle Taper........................... #50 NSTD
(16) Spindle Speeds, Range.............. 20 to 1000 RPM
(16) Longitudinal and Cross Feeds....... 1/2 to 30 IPM
(16) Vertical Feeds, Range.............. 1/4 to 15 IPM
Power Rapid Traverse, Long & Cross...... 150 IPM
Power Rapid Traverse, Vertical.......... 75 IPM
Spindle Motor, Horsepower............... 7-1/2 HP
Floor Space Required, W x D............. 6'8" x 5'10"
Overall Height.......................... 6'2"
Weight, Approximately................... 6750 LBS
PRICE: F.O.B. OUR WAREHOUSE............. $1,450.00
All machines/equipment subject to prior sale.
