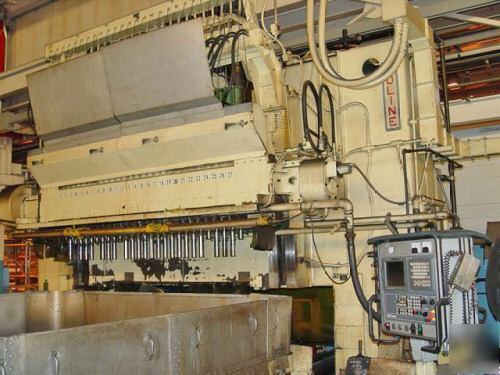

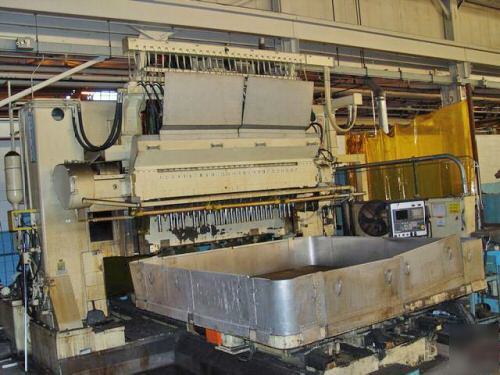

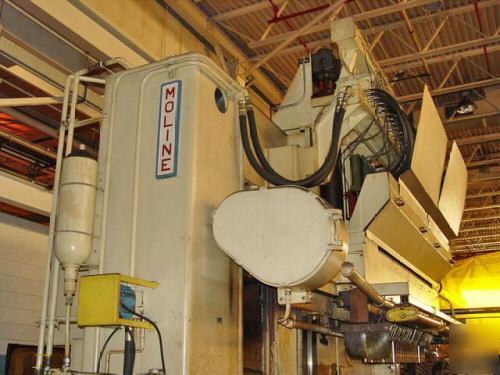

27 SPINDLE MOLINE MODEL HF68-10 IN-LINE CNC VERTICAL GANG DRILL

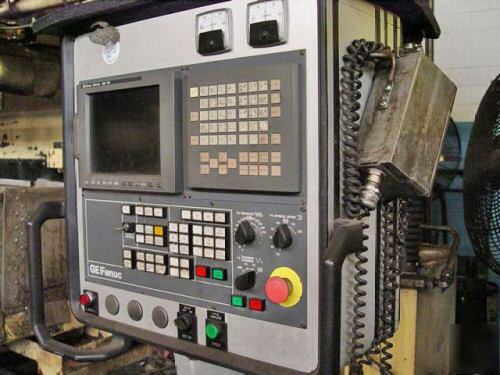

Retrofitted in 1998 with New GE Fanuc 18IM CNC Controls.
Motor Driven with 125 HP, 3-Phase, 60 Cycle A.C. Main Spindle Drive Motor. 20 HP Driving Hydraulic Feed Pump Motor. 25 HP Cooant Pump Motor.

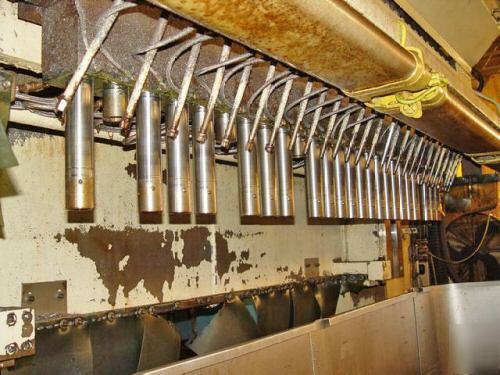

(27) Spindle Heads Mounted on a Double Spiral Rail. (2) 7" Diameter Hydraulic Feed Cylinders For 24" Max. Rail Travel. 62,000
Number Of Spindles.......................................27

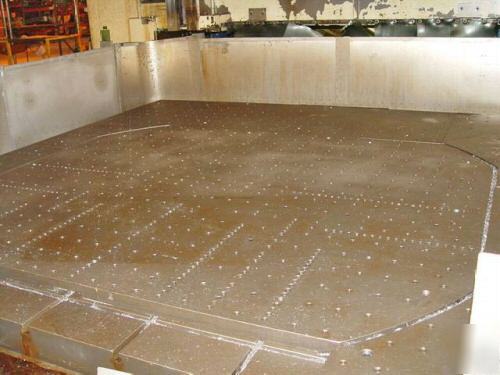

Table Size....................................................108" X 108"
Maximum Weight On Table............................20,000 Lbs.
Maximum Feed Thrust...................................62,000 Lbs.
Spindle Speeds.............................................210,273,372,435 RPM
Feed Rate....................................................1 - 15 IPM
X-Axis Spindle Travel......................................5-3/4"
Y-Axis Spindle Travel.....................................89"
Spindle Spacing Adjustable...........................3-1/2"-4.0625" Center
Bushing Bar Height Over Table......................2-3/4" Min.
Bushing Bar Height Over Table.....................14-3/4" Max
Max Size Of Work Piece..............................94" X 94"
Approximate Weight....................................110,000 Lbs.
