New 52" tan itz vertical band saw 21" under guides 30 hp

New 52" tan itz vertical band saw 21" under guides 30 hp

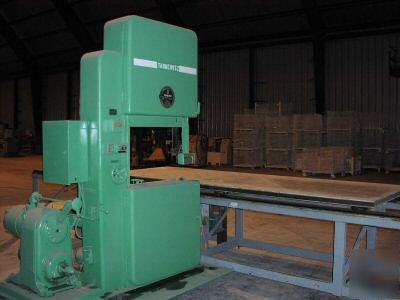

(1) Used 52” TANNEWITZ Mdl.S1NE Vertical Band Saw; Serial #76104, Mfg. 1976
Throat Capacity……………………………………….51”
Size, Wheel Diameter........................………………... 52”
Under guide capacity………………………………….20”
Base Construction…………………………………….Welded Steel
Motor Drive…………………………………………...Multiple V-Belt
Tires (Replacable)……………………………………..Speedi-change
Band Width Capacity………………………………….Up to 2”
Band Speed……………………………………………15,000FPM(nominal)
Band Length…………………………………………..27’– 3”
Table Size………….………………………………….36” L-R x 37” F-B
Auxiliary Table Size.………………………………….18” x 22”
Upper Wheel Adjustment……………………………..5”
Wheel Type……………………………………………Heavy-Duty Balanced Steel Disc
Brakes…………………………………………………Electric, 2 Wheel
Gear Adjusted guide post……………………………..STD.
Blade Tension Control……………………………….. Manual
Table Height…………………………………………..42”
Overall Height…………………………………………116”
Motor Horsepower…………………………………….30HP
Electrical Characteristics ……………………………..240/480 V.A.C. 3 Phase 60 Cycle
Automatic Electric/Hydraulic Brakes
Overall Dimensions: 77” L-R x 38” F-B 126” High (Pit required)
