HITEK 100KV 80MA POSITIVE POWER SUPPLY
* Inverter input volts - 208v 3 phase 27 amp 50/60 cs

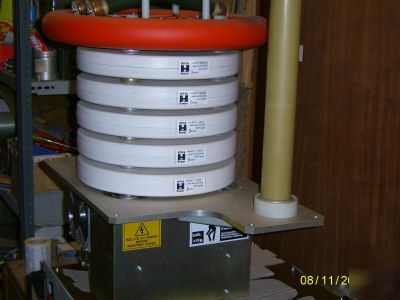

* EHT stack output - max 100kv 80ma positive
* Output voltage is variable via external DC supply which is 0 to 10v DC
* Model number - 0L8000/104/28W
* Hitek price is over £10,000!
* The info below is from the Hitek website
The Series OL8000 answer industry demands for high reliability, high voltage sources designed to meet the rigorous requirements of ion and electron beam systems within a compact assembly, at affordable prices. The Series OL8000 supply 8kW of output power. The system consists of two units: the converter, housed in a 4U 19" rack mounting unit and the HV unit, which is a separate high voltage multiplier assembly
* Range of output voltages available from 60kV to 200kV
* Outputs variable from zero to rated voltage
* Positive or negative polarity
* Robust IGBT converter design
* High frequency operation for minimum stored energy
* Arc and short circuit protected
* Constant voltage and constant current control
* Proprietary modular high voltage unit
* CE Marked for the Low Voltage Directive, 73/23/EEC
* Custom user interface design available
