HITACHI V-079 WAVEFORM MONITOR
click on images below to enlarge

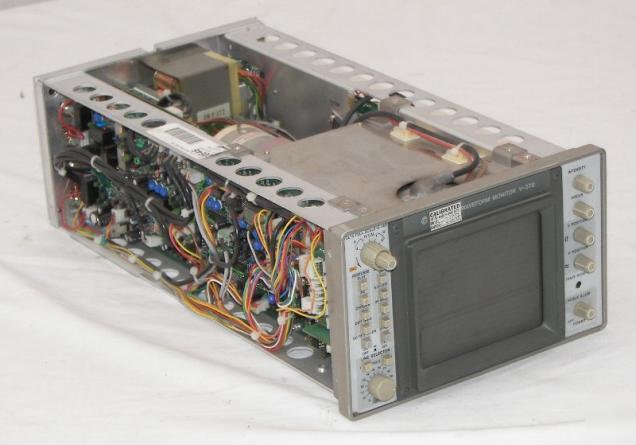

The V079 NTSC Waveform Monitor is a 6" rectangular monitor with 10 kV acceleration potential. Vertical deflection sensitivity is 1 V (±1%) or 4 V (±3%) full scale, 0.25 V to 4 V Variable control. Maximum input level is ±1, 1 V (at 1 V full scale), 4.4 V (at 4 V full scale). The frequency response is FLAT, IRE, CHROMA, DIFF GAIN. External Sync: Composite or VBS.
* Questions will be answered to the best of our knowledge
* PERSONAL CHECKS ARE NOT ACCEPTABLE.
