Tungsten tig welding rods X10 ceriated 2% 7" 1/16 1.6MM

Tungsten tig welding rods X10 ceriated 2% 7" 1/16 1.6MM

Welding, grinding or misuse of welding products can produce sparks, fumes and debris which can cause harm. Do not breathe fumes. Do not operate without proper eye protection. Do not use around flammable materials.
Ceriated 2%, 7" Long, 1/16" Diameter (1.6mm)

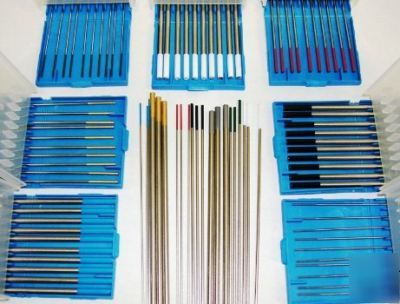

You get 10 pieces in a plastic case - NEW in BOX
This is an original Riland Replacement Part for all of our Welding / Plasma Cutters. Works with our Super160, Super160p, CT416, Tig110 & 130 Series, Tig200acdc and Tig200WSE / Tig200Pacdc. Also perfect for spark gaps, spark switches, marx and Tesla coil applications.
If you have questions feel free to call us (***)-442-7728.
Why would I use something other than Pure Tungsten?
With the introduction of new power source technologies, the use of pure tungsten is decreasing.
Pure tungsten melts at a lower temperature causing it to easily form a rounded ball at the tip. When the ball grows too large, it interferes with your ability to see the weld puddle and causes the arc to become unstable.
Ceriated tungsten can withstand higher temperatures and works very well with the new squarewave and inverter machines for the following reasons:
* Holds a point longer and starts well at low amperages.
* Can be used on both AC and DC polarities. When welding aluminum, it has become very acceptable to grind a point on ceriated tungsten (especially when welding on thinner materials).
* Allows welding amperages to be increased by 25-30% compared to Pure tungsten of the same diameter.
Provides good arc stability for AC welding. Reasonably good resistance to contamination. Lowest current carrying capacity. Least expensive. Maintains a balled end.
Similar performance to thoriated tungsten. Easy arc starting, good arc stability, long life. Possible replacement for thoriated.
Easier arc starting. Higher current capacity. Greater arc stability. High resistance to weld pool contamination. Difficult to maintain balled end on AC.
Similar performance to thoriated tungsten. Easy arc starting, good arc stability, long life, high current capacity. Possible replacement for thoriated.
Excellent for AC welding due to favorable retention of balled end, high resistance to contamination, and good arc starting. Preferred when tungsten contamination of weld is intolerable.
Typical Current Ranges for Tungsten Electrodes
All values are based on the use of Argon as a shielding gas. Other current values may be employed depending on the shielding gas, type of equipment, and application.
DCEN = Direct Current Electrode Negative (Straight Polarity).
Recommended Current Type, Tungsten and Gas for TIG Welding
