Net test cma 4000I optical test system

Net test cma 4000I optical test system

Wavelength: 1310/1550nm, dynamic range: 34/36db4425
SM module w/Power Meter and visual fault locator, light source, battery, power cord, and GN Nettest power supply.

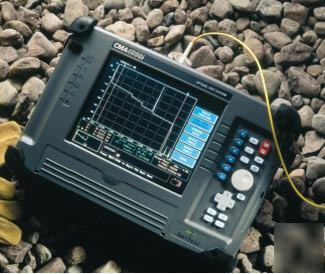

The NetTest CMA 4000i Optical Test System provides a complete test and measurement solution for the 100%-Optical Network. It has a modular design and can be configured to meet the most demanding requirements for a variety of applications from fault location to testing Dense Wavelength Division Multiplexing (DWDM) systems. The CMA 4000i can be configured as an OTDR with a Visual Fault Locator, Optical Power Meter, and Light Source, or as a high resolution Optical Spectrum Analyzer (OSA) for DWDM systems. With its variety of functions, the CMA 4000i clearly offers the best value for optical network commissioning, troubleshooting, restoration, and maintenance applications. This was designed to do it all, replacing several pieces of various gear.
The all-in-one test system for qualifying optical networks:
2. Fault Location / Restoration
With 50 dB of dynamic range and deadzones as small as 3.0 m, the CMA 4000i is ideal for testing long haul backbone networks, metro networks or Passive Optical Networks (PONs). For complete system characterization, the CMA 4000i can be easily equipped with a light source and power meter for complete end-to-end loss testing. In addition, the Visual Fault Locator (VFL) option for the CMA 4000i enables you to locate breaks within the OTDR¿s deadzone or identify specific optical fibers within a cable. The System offers a variety of operating modes for varyingOTDR applications.
For commissioning or maintaining networks that employ DWDM technology, the model 4792 OSA module for the CMA 4000i is the ideal instrument. It allows the testing of DWDM networks deployed both today and in the future. Operating from 1520-1620 nm (C- and L-band), the model 4792 OSA module for the CMA 4000i Optical Test System can automatically identify over 400 DWDM channels spaced less than 12.5 GHz apart - perfect for testing high capacity DWDM systems.
Characterizing complex DWDM systems is simple with the CMA 4000i. One-button operation ensures that even the novice user is capable of characterizing a complex DWDM system for channel center wavelength, power, and OSNR. Simply power on the unit with the OSA module installed and one of the following views will be displayed; Table View, Drift View, or Graph View.
Optical Test System. Includes the following options.
* Quantity: 1 (2 are available - call for discount price if you want both)
* Condition: Looks Like New, Fully Tested, in Mint Condition
* 1-Year Warranty Included (This is a $1125 value if purchased separately!)
