Camera 40-1008X metallurgical metallographic microscope

Camera 40-1008X metallurgical metallographic microscope

High Quality Microscopes at Bargain Prices!
Bargain Microscopes and Bargain Accessories for Microscopes.
Simple, Basic, Straight to the Point - You Save Here!
You've came to the right place to save lots of money on high quality microscopy items.

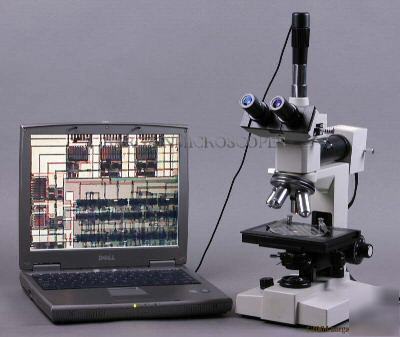

40x - 1008x UPRIGHT TRINOCULAR
EPI-ILLUMINATION - BRIGHTFIELD - DARKFIELD
W/ DIGITAL IMAGE CAMERA SYSTEM
* Excellent Quality Trinocular Professional Upright Metallurgical - Metallographic Microscope!
* Includes Three Illumination Techniques: Reflected Illumination, Transmitted Illumination, and Darkfield Illumination!
* Perfect for Detailed Examination and Micro-Analysis of a Metallic Surface!
* Upright Design (Objectives Above the Stage).
* Obtain Highly Magnified Images of Surface Structure.
* Professional Grade Unit with Advanced Capability!
* Excellent for a Variety of Industrial and Research Applications including Metallurgical Labs, Silicon Wafer Inspection, Industrial Inspection - Quality Control, and Foundries!
* Compare to Similar Units costing Thousands More with name brands!
* Advanced Epi-Illumination Design provides Maximum Lighting for Optimal Image Clarity.
* Light Travels Through the Objective, Reflects off Object's Surface, and goes Back Into Objective!
* Includes a Complete Microscopy System to Capture Live Digital Video on Your Computer!
* USB Connected Microscope Camera is Included!
* WARNING! Cheaper USB Cameras DO NOT include a Reduction Lens System! You Will Be Disappointed with a unit that is Missing this Critical Lens. The Lens is Necessary to Reduce the Severe Cutting of Field done by the CCD chip. This Unit INCLUDES a 0.5x Reduction Lens!
* Turn Your Computer into a Microscope Video Image Capture System!
* Take High Quality Still Color JPG Images, Sizes: 640x480 and 320x240 Pixels!
* Easy Connection to your Computer via USB!
* Great Optical System for Capturing High Quality Clear Digital Images!
* SIMPLE! - Just Insert Camera, Load the Included Software and Plug into your Computer's USB Port!
* Unlike most other Metallurgical scopes, this has a Transmitted Light Setting.
* This is a great feature that is useful for viewing transparent specimens since light shines through them from the base illumination.
* This scope also has Darkfield Capability, with the inclusion of two darkfield condensers.
* Eight Magnifications: 40x, 64x, 100x, 160x, 400x, 630x, 640x, and 1008x.
* Two Eyepiece Sets Included: Wide Field 10x / Wide Field 16x.
* Four PLAN DIN Objectives: 4x, 10x, 40x (Spring Loaded), and 63x (Spring).
* These PLAN Objectives are Superior Quality and the Most Expensive. The Achromatic and Semi-Plan as Found on Other Scopes are the Cheaper Quality.
>Head - Interpupillary Distance - Diopter
* 45 Degree Inclined Trinocular Head, Rotatable 360 Degrees.
* Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
* Diopter Adjustment on Both Oculars to Correct for Your Specific Vision Needs.
* Epi-Illumination Microscopy System: Includes its Own Filter Holders, Aperature/Field Diaphragms and Diaphragm Alignment Screws.
* Brightfield Transmitted Illumination Microscopy System: 1.25 N.A. Abbe Substage Condenser, Iris Diaphragm and Swing-Out Filter Holder.
* Darkfield Microscopy System: Both Darkfield Dry and Darkfield Oil Substage Condensers Included.
* Substage Condenser Movement Knob with Rack and Pinion Steel Gears and Condenser Alignment Screws.
* Filters Included for Epi-Illumination Light: Yellow, Blue, Green.
* Filters Included for Transmitted Light: Yellow, Blue, Frosted.
* Halogen Variable Intensity Epi-Illumination Light in External Rear Housing.
* Halogen Variable Intensity Transmitted Light in Base.
* Selector Switch to Choose Light Source.
* Large Graduated Mechanical Movable Stage: Size 136mm x 160mm.
* Low Position Coaxial X-Y Slide/Stage Movement Knobs - Range of Movement: 74mm (X-Direction - Slide Movement) x 53mm (Y-Direction - Stage Movement).
* Millimeter Graduations for Measurement of X-Y Stage Movement.
* Glass Stage Plate! Great for using Transmitted Light Source.
* Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
* Coarse Adjustment Travel Range: 37mm.
* Maximum Distance From Bottom of Longest Objective to Top of Stage: 33mm.
* Adjustable Lock Ring Stop to Limit Coarse Range to Protect Objectives and Specimens.
* Tension Adjustable Coarse Focusing.
* Total Overall Height of Microscope: 455mm.
* Instrument Weight: 17 lbs.
* Includes: Instruction Manual, Dust Cover, Extra 20W Bulb and Fuse.
* Includes Three Metal Slides for Holding Specimens.
* Manufactured under ISO: 9001 Standards.
* 110 VAC Power Requirement (Contact us about 220V availability).
* High Quality Solid Construction!
* Precision Made Glass Optics!
* This Microscope is covered by a 5 Year Warranty! Camera has a 1 Year Warranty.
