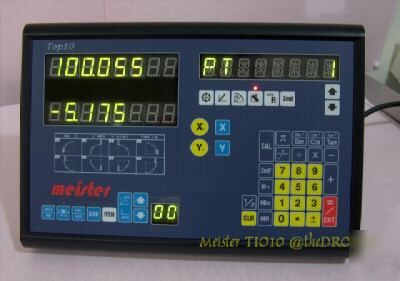

Meister TOP10 2 axis digital readout mill dro +2 scales

Meister TOP10 2 axis digital readout mill dro +2 scales

Mesiter TOP10 2 Axis DRO complete with scales for your Mill
Includes TWO (2) pieces of linear glass scales with travel stroke from 100 mm to 900 mm.
(Overall length of scale = Travel + 128 mm)
TOTAL PRICE = £260 + Postage = £260 !!
One year warranty direct from factory.
Display box swivel mounting arm, dust cover and English manual.
Extruded aluminum coolant guards.
Please contact us if you have any questions.
We worldwide to Austria, Australia, Belgium, Canada, Denmark, Estonia, France, Finland, Germany, Hungary, Ireland, Israel, Italy, India, Japan, Malaysia, Mexico, Netherlands, Norway, New Zealand, Poland, Philippines, Qatar, Romania, Switzerland, Slovenia, Slovakia, Spain, Sweden, Thailand, UK & USA.
* HALF(1/2) - selected axis display is divided by 2
* Absolute/Increment Co-ordinate Interchange
* Recall - recall the last X and Y positions. RTN - pause to go to normal operation or return to finish the job. Put the DRO to 'sleep' during break time.
* Mechanic Zero Position Memory: re-establish workpiece zero position after power failure.
* Holes in a straight or oblique line.
* Preset X and Y dimensions.
* Response Speed: 60m/min (198.6feet/min)
* Resolution: 0.005mm/0.0002"
* Resolution selectable to match 1 um and 10 um linear scales.
* Quantizing error: +/- 1 count
* Power Source: AC 110 - 220V, 50 - 60 Hz
* Auto-switching power supply.
* Temperature range: Operating 0 ~ 40 deg C
* Display: 8 digits LED display; green color
* Dimension: 10.25" x 7.0" x 2.0" (260 x 180 x 50 mm)
* Grating pitch: 0.02mm (50LP/min).
* Accuracy: ±0.005 mm or 0.0002"(at 20 deg C).
* Every scale has ABS reference marks.
* Response Speed: 60m/min or 40ins/sec
* Output Signal: Two square wave signals. TTL output.
* Standard 3 metres armoured cable.
Scales are manufactured in standard travel length:
* 100, 120, 150, 170, 200, 220, 250, 270, 300, 320, 350, 370, 400, 420, 450, 500, 520, 550, 570, 600, 620, 650, 670, 700, 720, 750, 770, 800, 820, 850, 870, 900, 920, 950, 970, 1000, 1020, 1200 mm.
* 4.5, 6.5, 8.5, 10.5, 12.5, 14.5, 16.5, 18.5, 20.5, 22.5, 24.5, 26, 28, 30, 32, 34, 36, 40 inches.
This is a OPTIMUM BF20 with Meister TOP10 DRO >>
* Check and bank transfer to be make payable to our company account.
* Factory will take 2 ~ 3 days to process your order.
* Tracking number will be provided.
* Transit time is about 9 ~ 12 days; subjected to delays at custom clearance.
* Please read my "30 Days Return Policy" for more details.
