UEI IRT3 RESISTANCE TESTER WITH LIMITED FACTORY WARRANTY
Visit My Store ,Check out my other items! for More Professional Test Tools

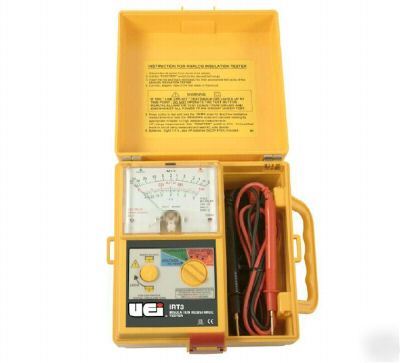

The IRT3 is an affordable, rugged Megohmeter used to check motor and generator windings, power transformers, and electrical lines. Its multiple output ranges make it suitable for a wide variety of applications.
Large high-contrast analog display
• Live circuit (external voltage applied) warning light
• AC Voltage measurement to 600 Volts
• Insulation resistance readings from 0 to 400 Megohms
• Three test-voltage ranges (250, 500, 1000 V DC)
• Fuse protected against accidental misuse
• Precision, low resistance test leads (1000 Volt CAT III rated)
• Low battery indication
• Maintains rated voltage on cables at up to 1 mA leak-rate
• Automatic, post-test cable discharge
• Rugged, compact case with latching cover to keep the elements out
• Three year limited warranty
Test Leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 pair
Batteries 1.5V, “AA” Alkaline (R6) . . . . . . . . . . . . . . . . . .8 pieces
Fuse 0.5A 250V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 piece
Instruction Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 booklet
Alligator Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 set
Hard Carrying Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 piece
! & ? (250 DC V ±10%) ±5% rdg (approx)
Open circuit current: 1mA DC min @ 0.25M
Short circuit current: 0 - 50M
Power consumption: Max current approximately 190mA @ 12 V DC
Function Range Accuracy Frequency Range
AC Voltage 0 - 600V ±2.5% ±3 dgt 40 - 1kHz
Open Circuit terminal voltage: 4V DC min.
Short Circuit terminal current: 240mA DC min.
Safety requirements: IEC-1010 safety requirements category III
Dimensions: 6.7 x 6.5 x 3.6 inches (170 x 165 x 92 mm)
Weight: 2.1 lb. (batteries included)
Complete User Manual & Data Sheet
