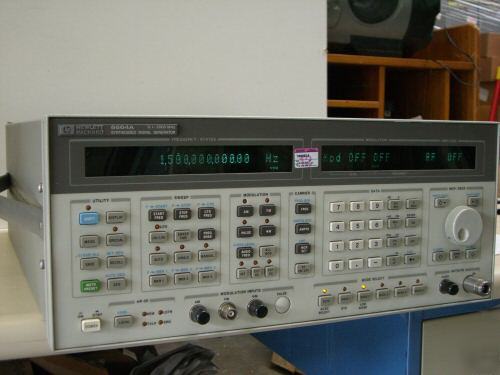

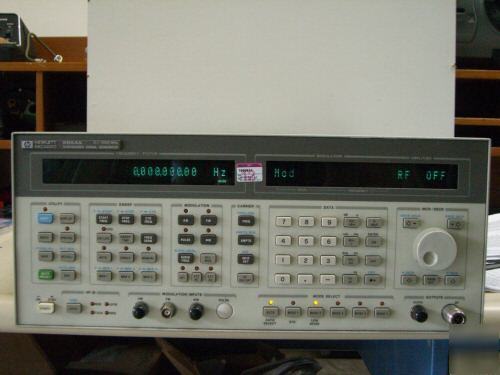

HP 8664A Signal Generator, 100 kHz - 3 GHz w/ opt. 004 - Low Phase Noise
* Description: The HP (Agilent) 8664A signal generator is suited for basic receiver testing up to 3.0 GHz. With Option 004 (low-noise enhancement), it can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important. Radar testing can be done by adding Option 008 (pulse modulation) . Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 10 MHz are suitable for many applications such as high-speed digital communications. Primary features and specifications include:
* SSB Phase Noise: at 10 kHz offset <-147 dBc/Hz (with option 004)
* Frequency Resolution: 0.01 Hz
* AM, FM, and optional pulse modulation
* <-100 dBc nonharmonic spurious to 2 GHz reduces error when testing spurious immunity of receivers
* Cosmetic Condition: Excellent
* Working Condition: Tested. Calibration expired 12/19/06

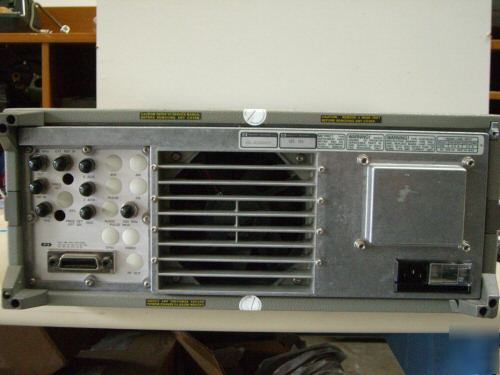

* Other Comments / Notes: One foot on rear is broken (shown in picture)
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
