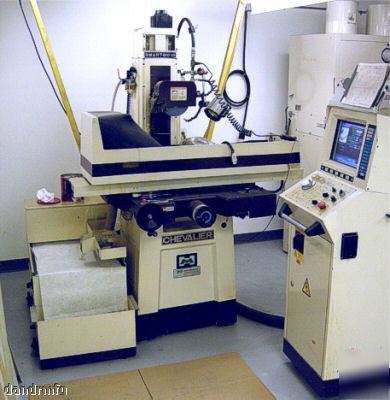

Cnc surface grinder H818 chevalier hydraulic table

Cnc surface grinder H818 chevalier hydraulic table

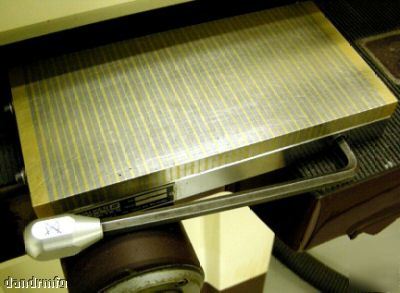

+3 FITTED INTERCHANGEABLE MAGNETIC TABLES
CUTTING WHEELS 2,4,6,8 SEGMENTS AND SPACERS

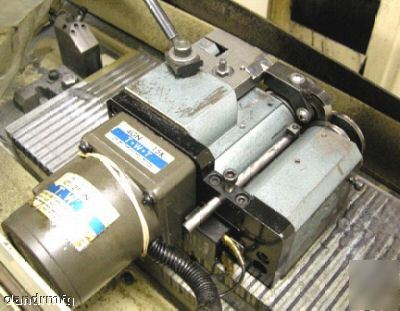

CENTERLESS PUNCH GRINDING ATTACHMENT

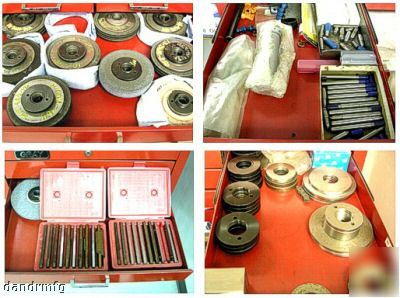

SEVERAL HUBS WITH DUAL AND TRIPLE WHEEL FOR ROUGHING, SEMI-FINISHING AND CUTTING IN ONE PROGRAM
LARGE TOOL BOX FOR ALL THE TOOLING

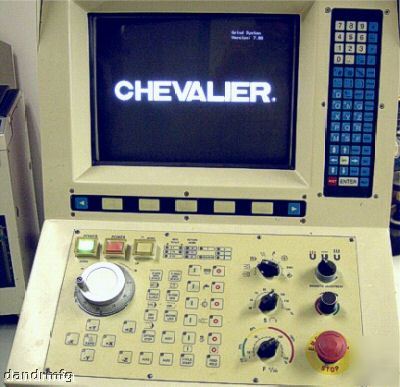

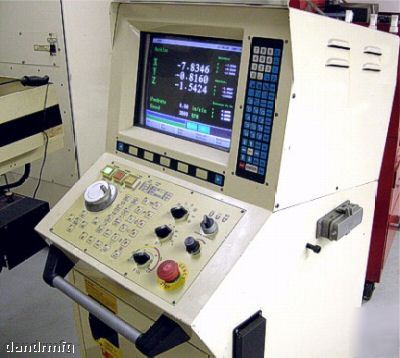

* 2 or 3 axis, Microsoft platform
* Data can be saved and transferred
* Variable pitch/depth slicing capability
* Switch between manual, semi-automatic, fully automatic or CNC
* "Macro zone” allows the operator to create his own programs
* Automatic wheel dressing can be done while machining or at end of cycle
* Canned cycles: slicing, plunge, criss-cross and step with
optional hydraulic creep feed.
* Conversational control language
* “Simulation mode” eliminates dry runs
* Counterbalance system provides greater downfeed accuracy
* Double “V” design, hand-scraped, Turcite-B coated longitudinal table ways
* 3/4” class C2 hardened and ground ballscrews with Mitsubishi AC servo motors
* Fully automatic lubrication system
* Fully supported table eliminates overhang problems
Max Grinding Length Longitudinal
Max Distance from Table Surface to Spindle Centerline
Longitudinal Movement of Table:
Longitudinal Travel, Hydraulic
Table Speed, infinitely variable
MACHINE IS UNDER POWER FOR YOUR INSPECTION
Also included is the Original Operation and Maintenance Manual.
This machine was purchased for our Tool Room FOR RESEARCH AND DEVELOPENT WORK. We have a very well maintained ISO-9001 shop and the machine was well looked after.
The machine overall it is in excellent shape.
I can give you the information and contacts to all the suppliers
If you need any further info on the machine or more pictures please contact me.
The machine is set up with a 600V 3 Phase but can run on apropriate transformer on any industrial 3 pahse power.
Loading onto a flat bed truck will be $500.00US
The freight to the northern U.S. states will be about $800.00US and to the southern U.S. states about $1200.00US.
If we are charged prices lower than the above figures by our freight forwarder for loading and transportation we will pass the savings onto you.
Please provide a zip code for an accurate quote to your door.
E-mail me and I can answer any further questions you may have.
