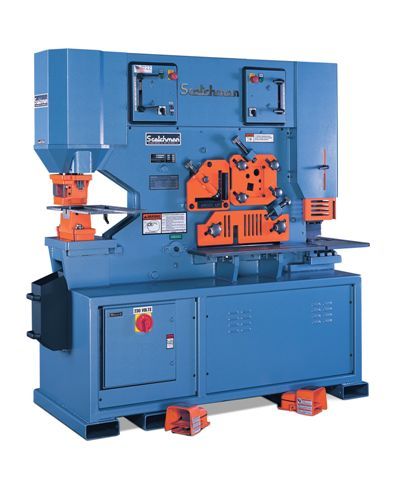

85Tn NEW IRONWORKER, Scotchman DO 8514-20M 14
85Tn NEW IRONWORKER, Scotchman DO 8514-20M 14
Dual Operator so Two Operators can Work at the Same Time at Full Capacity
85 Ton Punch Station (1-1/16" in 1")
Punch Gauging Table with Fence and Scale
Die Holder Complete with 2" Die Insert
for #82 Dies, Punch Nut with Wrench
Adjustable Swing-Away Stripper
One Round Punch & Die: Max. Dia. 1-1/4"
Two Adjustable Electric Stroke Controls with Scale
Two Electric Remote Foot Pedals
6" x 6" x 1/2" Slug-less Angle Shear
Built-In Rectangle Notcher: 2" x 4" x 1/2" can be converted to
3" x 3" V-Notcher, 50-Ton Punch Station, and 6" Open End Brake
20" Flat Bar Shear with 4-Way Reversible
Rod Shear: 1/2", 3/4", 1", 1-1/2" Round
Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
230 or 460 Volt /3 ph Electrics
All Guards Necesary to Comply with
Rated On: 65,000 PSI Tensile - A 36 Mild Steel
Punching Capacity: 85 Ton, 1-1/16” in 1"
Flat Bar Shear: 20” Length, 1" x 16", 3/4" x 20"
Angle Shear 90 Degrees: 6” x 6” x 1/2”
Angle Shear 45 Degrees: 4” x 4” x 1/2”
Pipe Notcher Schedule 40 ID: ¾”, 1”, 1-1/4”, 1-1/2”, 2”
90 Deg. V. Notcher (Punch Station): 6" x 6" x 5/16"
Rectangle Notcher: 2” x 4"” x 1/2”
90 Deg. V. Notcher (Notcher Station): 3” x 3” x 1/2”
Punch Attachment (Notcher Station): 50 Ton, 1-1/4" in 1/2"
Round Rod: 1/2", 3/4", 1", 1-1/2"
Square Tube Shear: ½” to 2”, 14 ga.
Offset Die Holder: Max. 40 Ton
SPM - Light Material: ¼” Stroke
SPM - Heavy Material: ¾” Stroke
Motor Standard: 10 hp, 3 ph, 230/460/208/380/575
Dimensions: 30”W x 60”L x 77”H
Machine Location: HARRISON, NJ
