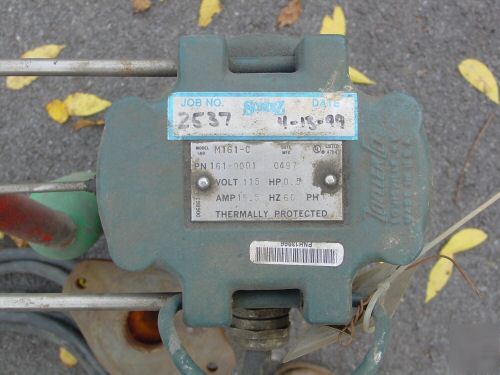

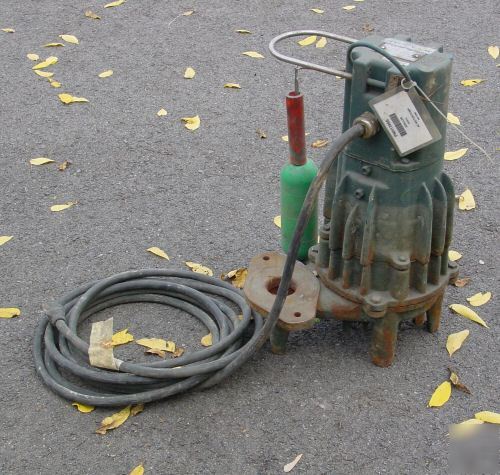

Automatic submersible pump, zoeller m-161C 110V 1/2 hp.

Automatic submersible pump, zoeller m-161C 110V 1/2 hp.

Model 161 1/2 HP Single Seal Series
* Non-clogging bronze vortex impeller design.
* Durable cast construction. Cast iron switch case, base, motor and pump housing.
* Castings - Cast iron class 25-30 (25,000# tensile strength). Impeller, bronze class 85-5-5-5.
* Corrosion resistant powder coated epoxy finish.
* 20 ft. UL Listed 3-wire neoprene cord and plug. Longer cords available in lengths of 25-35-50 feet.
* Motor - 60 Hz, 3450 RPM, oil-filled, hermetically sealed, automatic reset thermal overload protection (1 Ph only).
* Upper sleeve bearing and lower ball bearing running in bath of oil.
* Carbon and ceramic shaft seal.
* Maximum temperature for effluent or dewatering, 130°F - 54°C (ED 140°F - 60°C).
* Major width 12 3/4”. Height 18 9/16”. (Single seal pumps)
* Square Ring & Gasket - Neoprene.
* Stainless steel screws, bolts, float rod, handle guard, arm and seal assembly.
* Passes 3/4” spherical solids.
* 1 1/2” NPT discharge with 2” or 3” flange available.
* Automatic units available with float operated, submersible (NEMA 6) 2-pole mechanical switch. On point 14 3/4” - Off point 5”.
* Available in single or double seal designs.
* 100% of units are computerized tested.
