Vhdci - MD68 shld cble w/2 bnc for national instruments

Vhdci - MD68 shld cble w/2 bnc for national instruments

This will connect to a National Instruments "M Series" VHDCI System
VHDCI - MD68 6' (male-male) Cable (#100570) & CB68LP (#500054)Breakout w/ 2 BNC Combo #500055
68 PIN SCREW TERMINAL with Female Connector and BNC Connectors
for use with NATIONAL INSTRUMENTS
This will connect to a National Instruments M Series VHDCI System

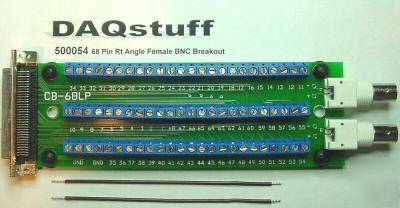

CB-68 Female Right Angle BREAKOUT with Rubber Feet and BNC Connectors with a VHDCI 6' Cable
THIS IS A MUST HAVE FOR INTERFACING TO THE OUTSIDE WORLD
* Qty 1 #100570 VHDCI Male to MD68 Male 6' Cable
* Qty 1 #500054 68 Pin Right Angle Female with 2 BNC connectors
* PIN to PIN connections
* 1 PIN TO 1 SCREW
* Numbers clearly marked
* 4 Extra screw terminals for a common earth ground (SCREW TERMINALS 69 THRU 72)
* Two configurable BNC Connectors
* Two jumper wires for the BNC Connectors
* Custom connect any terminal to the BNC Connectors
THIS BREAKOUT IS BRAND NEW AND DOES NOT HAVE ANY BLOWN TRACES
