> 14" x 36" sidney engine lathe, s/n #7974, model #140

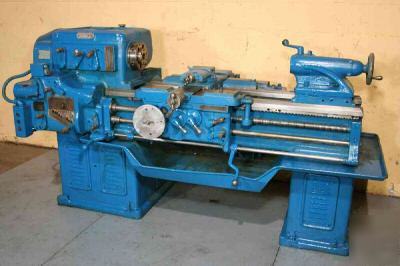

14" x 36" sidney engine lathe, s/n #7974, model #140
14" x 36" sidney engine lathe, s/n #7974, model #140
From: Shane Wilson
Subject 14" x 36" sidney engine lathe, s/n #7974, model #140
SERIAL .................................. 7974
MODEL ................................... 140
SWING OVER WAYS ......................... 17´´
SWING OVER CROSS SLIDE .................. 11´´
DISTANCE BETWEEN CENTERS ................ 36´´
SPINDLE SPEEDS .......................... (12) 14 TO 534 RPM
FEEDS ................................... (48) .0027 TO .172 IPR
THREADS ................................. (48) 1 1/2 TO 92 TPI
DIAMETER OF SPINDLE HOLE ................ 1 1/2´´
CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
Contact: shane_wilson@rockford-industrial.com (Shane Wilson)
