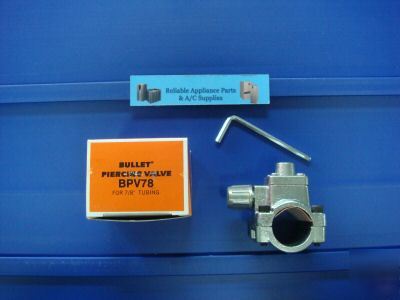

Bullet piercing valve BPV78 for 7/8" tubing fast ship

Bullet piercing valve BPV78 for 7/8" tubing fast ship

. Install on the high side as a "Permanent" valve on the job
. The Bullet® Piercing Valve will not leak
. Install on round suction lines or uneven tubing
. Hex key wrench included . No additional tools required
. Nonpositional mounting . No adapter valve required
. Precision piercing needle is engineered for concentricity and hard
ness to insure perfect seating every time
. Patented valve gasket application provides 50 times more sealing
area than competitive "O" ring types
. A sealing force of over 180 inch lbs., torque tested with 500 lbs.,
. Requires only a 2" clearance area for installation and operation
. Provided with a corrosion resistant plated and lacquered finish
BPV SERIES BULLET PIERCING VALVES
PART NO. O.D. TUBING SIZE PACKAGING
BPV31 1/4", 5/16", 3/8" 12/Box
SUPCO Bullet Piercing Valve. utilizes the same type of gasket found
under the head plate of most air conditioning compressors. When
installed, the gasket actually compresses the copper tubing .020"
creating a "Permanent", leakproof seal that will withstand any pressure
and temperature for the life of the unit.
NOTE: BPV31 and BPV21 are furnished with adapter sleeves for
indicated multiple use applications.
BPV31 Bullet® Piercing Valves are available in an attractive countertop
display box containing 48 valves. Specify BPV31D when ordering.
