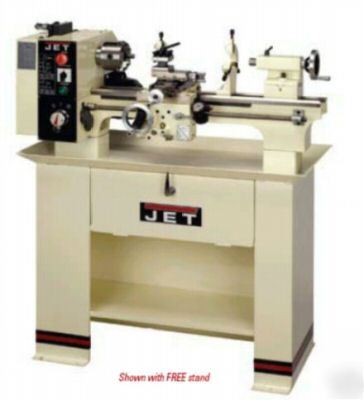

Jet 321155K 9" x 20" belt drive bench lathe free stand

Jet 321155K 9" x 20" belt drive bench lathe free stand

Jet 321376 Bench Lathe With Free Stand
* Spindle supported by precision tapered roller bearings
* Hardened and ground bedways
* Power Longitudinal feed allows threading and reverse threading
* Standard 1-1/2 X 8 TPI spindle mount allows for many aftermarket accessories
* Reversing switch included for added versatility
* Backlash adjustments provided throughout the carriage
* Tailstock is adjustable for taper cuts
* Quick change gearbox provides wide range of inch and metric threads
* 4” 3 jaw chuck with threaded back plate
* 7” 4 jaw chuck with threaded back plate
* Compound Slide Travel (in.) 1-7/8
* Cross Slide Travel (in.) 5
* Distance Between Centers (in.) 20
* Family Description Turning
* Follow Rest Capacity (in.) 1/4 - 1-1/8
* Max Tool Size (in.) 1/2 x 1/2
* Motor 3/4HP, 1Ph, 115V only
* Number of Longitudinal and Cross Feed Rates 60
* Number of Metric Threads 18
* Number of Spindle speeds 6
* Range of Cross Feeds (IPR) N/A
* Range of Inch Threads (TPI) 8 - 60
* Range of Longitudinal Feeds (IPR) .0006 - .037
* Range of Metric Threads 0.4 - 3.5
* Range of Spindle Speeds (RPM) 130 - 2000
* Spindle Mount 1/2" x 8 TPI
* Spindle Taper W/ Sleeve MT-3
* Steady Rest Capacity (in.) 1/4 - 1-7/8
* Swing over Cross Slide (in.) 5-5/16
* Swing Through Gap (in.) N/A
* Tailstock Spindle Travel (in.) 1-9/16
* Taper in Tailstock Spindle MT-2
* Web Description 9" x 20" Belt Drive Bench Lathe
