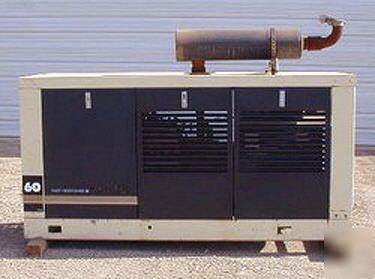

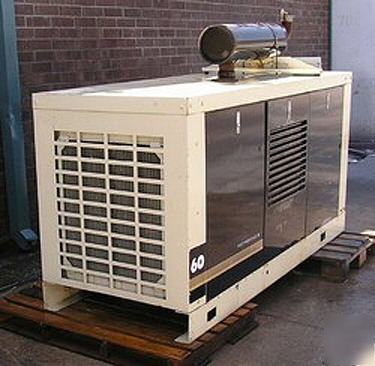

Kohler 60 kw 1-ph standby generator

Kohler 60 kw 1-ph standby generator

NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting.
Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds.
Sustained short-circuit current enabling downstream circuit breakers to trip without collapsing the alternator field.
Self-ventilated and dripproof construction.
Vacuum-impregnated windings with fungus-resistant epoxy varnish for dependability and long life.
Superior voltage waveform from a two-thirds pitch stator and skewed rotor.
Solid-state, volts-per-hertz voltage regulator with ±2% no-load to full-load regulation.
Fast-Response III wound field (WF) brushless alternator with auxiliary power brushless exciter for excellent load response.
Fuel supply line inlet :1 NPTF
Lubricating System Type : Full Pressure

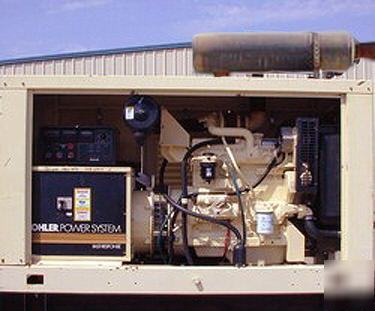

Industrial Powertrain Vortec 5.7 L, 4-Cycle
Piston speed, m/min. (ft./min.)
Max. power at rated rpm, kW (HP)
Frequency regulation, no-load to full-load
Frequency regulation, steady state
Starter motor rated voltage (DC)
Voltage regulation, no-load to full-load
Standard Features and Accessories

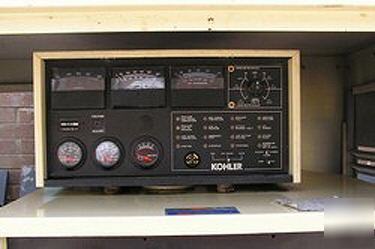

Alternator Protection (standard with 550 controller)
Electronic, Isochronous Governor
Operation and Installation Literature
Sound Enclosure (with enclosed critical silencer)
Weather Enclosure (with enclosed critical silencer)
Weather Housing (with roof-mounted silencer)
Manual Valve and Gas Solenoid Bypass
Battery Charger, Equalize/Float Type
Alternator, Permanent Magnet (PM)
Air Cleaner Restrictor Indicator
Engine Fluids (oil and coolant) Added
General Maintenance Literature Kit
Maintenance Kit (includes standard air, oil, and fuel filters)
Overall Size, L x W x H, mm (in.) : Narrow Skid 2200 x 865 x 1211 (86.6 x 34.0 x 47.7)
