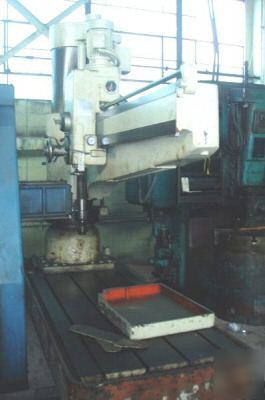

8'19" femco radial drill #23816

8'19" femco radial drill #23816

New 1980, Serial No 80-2507, Model WRD75/2500,
Power Arm Elevation - Power Clamping
Arm Length............................. 8'
Column Diameter........................ 23.625"
Horizontal Head Travel on Arm.......... 82.625"
Vertical Arm Travel on Column.......... 32.25"
Spindle Travel......................... 15.75"
Drilling Capacity, Solid Steel......... 3"
Drilling Capacity, Cast Iron........... 3.625"
Tapping Capacity, Solid Steel.......... 3.5"
Boring Capacity, Solid Steel........... 7.875"
Boring Capacity, Cast Iron............. 11"
Spindle-Nose to Base, Minimum.......... 23.625"
Spindle-Nose to Base, Maximum.......... 70.875"
Base Working Surface, W x L............ 49.625" x 141"
Base Height............................ 11.875"
Spindle Nose Diameter.................. 3.375"
Spindle Taper.......................... #5 MT
(16) Spindle Speeds, Range............. 20 to 2180 RPM
(8) Spindle Feeds, Range............... .0015 to .04 IPR
Main Motor, Horsepower................. 10 HP
Elevation Motor, Horsepower............ 5 HP
Clamping Motor, Horsepower............. 2 HP
Weight, Approximately.................. 19800 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $19,500.00
All machines/equipment subject to prior sale.
