New dirak quarter turn cam lock heavy duty quality save

New dirak quarter turn cam lock heavy duty quality save

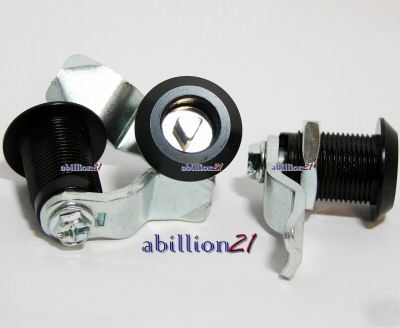

( Picture shows three at different angles
for illustrative purposes only)
Unit is preassembled by the manufacturer
200-9013 Zinc Die Black Housing
200-0410 Cam 45mm length from center
200-9031 Adapter , Zinc Die with screw , Grounding / Earthing Nut
200-9104 Insert , Triangular 7mm , Zinc Die Chrome Plated
Maximum door thickness this will fit is 20mm (13/16ths inch)
Approx. 22mm distance from cam strike face
Please refer to manufacturers website and drawings for required
Installation opening cutout sizes and designs.
Required Triangular 7mm key Part # 204-0104
can be obtained through manufacturer website
