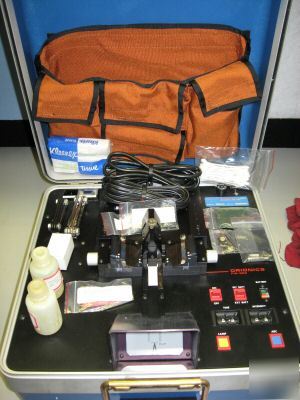

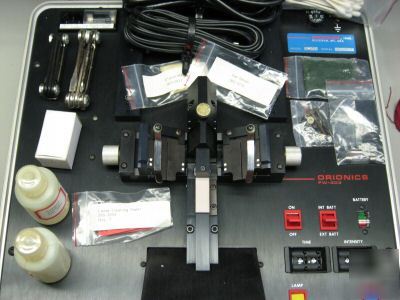

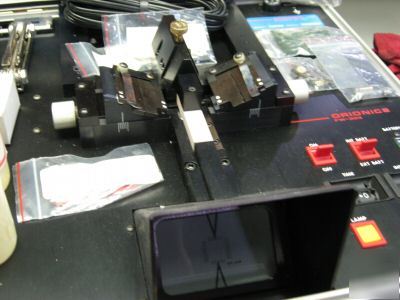

Orionics fw-303 fiber optic fusion splicer w/access.

Orionics fw-303 fiber optic fusion splicer w/access.

Welcome to Surplusmeister Super Store!!!
The model number for this item in FW-303.
Specifications about this item are as follows:
Fiber Diameter: 100 - 200 uM O.D. glass clad, single mode or multi-mode fiber.
Splice Loss: Average splice loss typically 0.15 dB or less when splicing commercially - available 50 um core, 125 um O.D. graded index fibers.
Viewing Optics: Rear projection screen technique, 60X magnification with calibrated 25 um markers and fiber alignment pointers.
Arc: High-frequency, alternating current, tungsten electrodes.
Arc Controls: Individual thumbwheel settings for time and intensity. Time can be set from 0.1 to 9.9 seconds in 0.1 second increments. Intensity can be set between 00 and 99 (10 to 30 mA).
Fiber Alignment: V-groove alignment system with two single-axis positioners.
Power: Powered from the following power sources
* Internal DC batteries with integral charger.
* Powered from a 100 - 250 VAC, 48 to 440 Hz source, 40 W.
* Powered from external 11 to 18 VDC, 3A source.
Splices per Battery Charge: Over 100 splices per charge with 125 um fibers.
