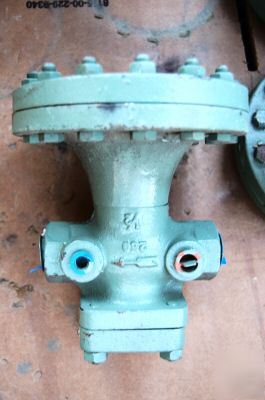

New spence type e main valve 1/2IN brand boilers steam

New spence type e main valve 1/2IN brand boilers steam

Full 1.5 2.8 5.4 8.8 14.1 19.8 31 44 74 109 169 248 (***) 706 1113
Full 75 % — 2.1 4.0 6.6 10.6 14.8 23.3 33 56 82 127 186 333 530 835
Full 50 % — 1.4 2.7 4.4 7.0 9.9 15.5 22 37 55 85 124 222 353 557
Normal .65 1.5 4.8 7.5 10.4 14.6 17.6 24 43 78 115 151 249 377 631
Normal 75 % — — — — — — — 18 33 59 87 114 187 283 474
Normal 50 % — — — — — — — 12 22 39 58 76 125 189 316
Pressure Regulating for Steam Distribution
Regulating for Process Control (Temperature or Pressure)
Maintain Back Pressure or Differential Pressure
For use with Self-contained, Pneumatic or Electronic Pilots
Single Point or Multiple Use Applications
Valve Ends Pressure Temperature
Class 250 NPT 250 (17.2) @ 450 (232)
B16.1 Class 125 Flanged 125 (8.6) @ 450 (232)
B16.1 Class 250 Flanged 250 (17.2) @ 450 (232)
B16.34 Class 300 NPT 300 (21.0) @ 600 (315)†
B16.34 Class 150 Flanged 150 (10.3) @ 500 (260)
B16.34 Class 300 Flanged 300 (21.0) @ 600 (315)†
B16.34 Class 600 Flanged 600 (41.4) @ 600 (315)†
†750°F (400°C) construction available on request.
Other pressure/temperature ratings available; consult factory.
Maximum downstream pressure is 300 psi.
Canadian Registration # OC 0591.9C
PRESSURES to 600 PSIG at 750°F
Fluid, Gas & Vapor Applications
Multiple Trims for Precise Sizing
ANSI/FCI 70-2 Class IV Shutoff
Virtually Frictionless for Long Service Life
Wide Variety of Pilots for Many Applications
Minimum Operating ΔP 10 psi (.7 bar)
Lifetime Warranty against Wiredrawing of
Composition Disc Parabolic Disc
Balanced Construction Integral Mount Pilot
Insulcap Insulating Jacket Secoweld
High Temperature Construction Dashpot
Low ΔP (LP) Main Spring EZ Connections
RESSURE REDUCING ……………TYPE ED SERIES
IR ADJUSTED……………………TYPE EA SERIES
ACK PRESSURE…………………TYPE EQ SERIES
UMP GOVERNOR ………………TYPE EP SERIES
OAD ALLOCATING………………………TYPE EFD
IR CONTROLLED ……………………TYPE EAP60
LECTRONIC SLOW START…………TYPE ED208D
OLENOID CONTROLLED ………………TYPE EMD
OLENOID ACTUATED ……………………TYPE EM
IFFERENTIAL ……………………………TYPE EN
EMPERATURE CONTROL…………TYPE ET SERIES
* When installed according to factory specifications.
Add EZ Connections for ease of maintenance
inches (mm) AND WEIGHTS pounds (kg)
A B Std. Mount Integral Mount D* APPROX. WT.
SIZE ANSI ANSI ANSI ANSI ANSI ANSI CI & Brz. Steel Steel ANSI ANSI ANSI ANSI
NPT 125,150 250 300 600 600 All 600 NPT 125,150 250,300 600
/8 43/8 — — — — 57/8 23/4 — 31/2 31/2 — 51/4 14 — — —
(10) (111) — — — — (149) (70) — (89) (89) — (133) (6) — — —
/2 43/8 — — — 6 57/8 23/4 23/4 31/2 31/2 35/8 51/4 14 — — 20
(12) (111) — — — (152) (149) (70) (70) (89) (89) (92) (133) (6) — — (9.1)
/4 43/8 — — — 63/8 61/2 27/8 37/8 35/8 33/4 41/2 51/2 18 — — 28
(19) (111) — — — (162) (165) (73) (98) (92) (95) (114) (140) (8) — — (13)
3/8 51/2 6 61/2 61/2 7 35/8 41/4 43/8 43/8 43/4 61/4 23 26 31 32
(25) (137) (140) (152) (165) (165) (178) (92) (108) (111) (111) (121) (159) (10) (12) (14) (15)
1/4 61/2 63/4 71/4 77/8 77/8 77/8 41/8 45/8 4 45/8 5 61/2 33 37 41 45
(32) (165) (171) (184) (200) (200) (200) (105) (117) (102) (117) (127) (165) (15) (17) (19) (20)
1/2 71/4 67/8 73/8 8 8 83/4 43/8 51/8 43/8 5 — 71/8 43 47 55 58
(38) (184) (175) (187) (203) (203) (222) (111) (130) (111) (127) — (181) (20) (21) (25) (26)
1/2 81/2 9 101/4 101/4 97/8 51/4 53/4 5 55/8 53/4 75/8 62 73 78 83
(51) (191) (216) (229) (260) (260) (251) (133) (146) (127) (143) (146) (194) (28) (33) (35) (38)
1/2 — 93/8 10 111/4 111/4 107/8 53/4 77/8 51/2 6 81/4 83/8 — 95 100 130
(64) — (238) (254) (286) (286) (276) (146) (200) (140) (152) (210) (213) — (43) (45) (59)
3/4 121/4 121/4 113/4 65/8 91/8 63/8 71/8 — 91/4 — 125 140 175
(76) — (254) (273) (311) (311) (298) (168) (232) (162) (181) — (235) — (57) (64) (80)
7/8 121/2 121/2 141/2 143/4 75/8 105/8 71/4 8 — 117/8 — 210 230 310
(102) — (302) (318) (318) (368) (375) (194) (270) (184) (203) — (302) — (95) (105) (141)
5/8 141/2 141/2 161/2 167/8 81/2 121/2 81/8 81/2 — 121/2 — 295 310 490
(127) — (346) (368) (368) (419) (429) (216) (318) (206) (216) — (318) — (134) (141) (223)
1/8 16 16 173/8 193/4 10 133/4 91/2 91/2 135/8 141/8 — 420 470 655
(152) — (384) (406) (406) (441) (502) (254) (349) (241 (241) (346) (359) — (191) (214) (298)
5/8 221/2 111/2 153/8 111/4 113/4 — 171/4 — (***) 710 1070
(203) — (483) (508) (508) (549) (572) (292) (391) (286) (298) — (438) — (318) (323) (486)
5/8 25 25 — 28 133/4 — — — — 233/8 — 1240 1300 —
(254) — (600) (635) (635) — (711) (349) —
1/2 28 28 — 33 157/8 — — — — 251/4 — 2060 2140 —
(305) — (673) (711) (711) — (838) (403) —
The valve shall be self-operated, external pilot type, single
seated, metal diaphragm actuated, normally closed design. The
valve will function quickly and shut tight on dead end service.
Internal parts including seats, discs, stems and diaphragms shall
be of stainless steel. There shall be no springs in the steam space
and no stuffing box. The valve shall be easy to maintain with all
parts accessible without removal from the line.
Body, Cast Iron …………………………ASTM A126 Cl. B
Body, Cast Bronze ……………ASTM B61 UNS C92200
Body, Cast Steel ………………………ASTM A216 WCB
Stem ……………………………303 St. Stl. ASTM A582
Disc 3/4 - 5" ……………420 St. Stl. ASTM A743 CA-40
Disc 6 - 12" ………………304 St. Stl. ASTM A167/A240
Seat 3/4 - 5" ……………420 St. Stl. ASTM A743 CA-40
Seat 6 - 12"…………316 St. Stl. ASTM A743-79 CF-8M
Gasket ………………………………………Non-asbestos
Diaphragm …………………Stainless Steel MIL-S-5059C
Spring …………………………………………………Steel
*Add 65% to D dimension for stem removal clearance.
Pressure Regulating for Steam Distribution
Regulating for Process Control (Temperature or Pressure)
Maintain Back Pressure or Differential Pressure
For use with Self-contained, Pneumatic or Electronic Pilots
Single Point or Multiple Use Applications
Valve Ends Pressure Temperature
B16.4 Class 250 NPT 15 (1.03) 250°F (121°C)
B16.1 Class 125 Flanged 15 (1.03) 250°F (121°C)
Canadian Registration # OC 0591.9C
Accurate Regulation Unaffected by
ANSI/FCI 70-2 Class IV Shutoff
Virtually Frictionless for Long Service Life
Wide Variety of Pilots for Many
Minimum Operating ΔP 3 psi (.2 bar)
Lifetime Warranty against Wiredrawing of
Composition Disc for liquid, air or gas service
Insulcap Insulating Jacket Integral Mount Pilot
RESSURE REDUCING …………………TYPE E2D
IR ADJUSTED …………………TYPE E2A SERIES
ACK PRESSURE ………………………TYPE E2Q
OAD ALLOCATING ……………………TYPE E2FD
IR CONTROLLED …………………TYPE E2AP60
LECTRONIC SLOW START ………TYPE E2D208D
OLENOID CONTROLLED ……………TYPE E2MD
OLENOID ACTUATED …………………TYPE E2M
IFFERENTIAL……………………………TYPE E2N
EMPERATURE CONTROL ……………TYPE E2T14
EMP. & PRESSURE CONTROL ……TYPE E2T134
3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12
Full 7.6 11.7 18.9 27.4 44 68 96 143 202 255 (***) 748 1118
70%-75% — 8.8 13.2 19.2 30.8 47.6 67.2 100 141 178 — — —
45% — — — 12.3 — 30.6 — 64.4 — 11.4 — 336 —
* When installed according to factory specifications.
Add EZ Connections for ease of maintenance
inches (mm), WEIGHTS pounds (kg)
A OTHER DIMENSIONS APPROX. WT.
SIZE ANSI ANSI B Std. Integral D* ANSI ANSI
/4 43/4 — 8 27/8 35/8 73/4 18 —
(19) (121) — (203) (73) (92) (197) (8) —
3/8 51/2 8 35/8 43/8 81/8 19 21
(25) (137) (140) (203) (92) (111) (206) (9) (10)
1/4 61/2 63/4 9 41/8 4 81/4 30 33
(32) (165) (171) (229) (105) (101) (210) (14) (15)
1/2 71/4 67/8 93/4 43/8 41/2 83/4 36 40
(38) (184) (175) (248) (111) (118) (222) (16) (18)
1/2 81/2 101/2 51/4 5 10 50 57
(51) (191) (216) (267) (133) (127) (254) (23) (26)
1/2 — 93/8 101/2 53/4 53/8 111/2 — 70
(64) — (238) (267) (146) (136) (292) — (32)
(76) — (254) (286) (168) (162) (324) — (45)
7/8 131/2 63/4 65/8 135/8 — 135
(102) — (302) (343) (171) (168) (346) — (61)
(127) — (346) (362) (191) (187) (381) — (84)
(152) — (384) (406) (200) (178) (422) — (114)
(203) — (483) (508) (241) (235) (505) — (550)
The valve shall be self-operated, external pilot type, single
seated, hycar diaphragm actuated, normally closed design. The
valve will function quickly and shut tight on dead end service.
Internal parts including seats, discs and stems shall be of
stainless steel. There shall be no springs in the steam flow path
and no stuffing box. The valve shall be easy to maintain with all
parts accessible without removal from the line.
Body, Cast Iron …………………………ASTM A126 Cl. B
Body, Cast Bronze………ASTM B61-80 61UNSC 92200
Stem ……………………………303 St. Stl. ASTM A582
Disc 3/4 - 2" ……………420 St. Stl ASTM A743 CA-40
Disc 2-1/2 - 12" …………304 St. Stl. ASTM A167/A240
Seat………………………420 St. Stl. ASTM A743 CA-40
Gasket ………………………………………Non-asbestos
Diaphragm ……………………………………………Hycar
*Add 55% to D dimension for stem removal clearance.
PRESSURES to 300 PSIG at 600°F
Long Main Spring Operates on 5 psi
Internal & External Condensation Chambers
Fluid, Gas & Vapor Applications
Accurate Regulation Unaffected by
ANSI/FCI 70-2 Class IV Shutoff
Virtually Frictionless for Long Service Life
Wide Variety of Pilots for Many Applications
Lifetime Warranty against Wiredrawing of
Composition Disc for liquid, air or gas service
Balanced Construction Secoweld
Integral Mount Pilot EZ Connections
RESSURE REDUCING …………………TYPE E5D
IR ADJUSTED …………………………TYPE E5A
ACK PRESSURE ………………………TYPE E5Q
UMP GOVERNOR ………………………TYPE E5P
OAD ALLOCATING ……………………TYPE E5FD
IR CONTROLLED …………………TYPE E5AP60
LECTRONIC SLOW START ………TYPE E5D208D
OLENOID CONTROLLED ……………TYPE E5MD
OLENOID ACTUATED …………………TYPE E5M
IFFERENTIAL……………………………TYPE E5N
EMPERATURE CONTROL ………………TYPE E5T
3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12
Full 7.6 11.7 18.9 27.4 43 67 95 159 258 (***) 665 1018 1611
Normal 5.7 10.0 13.4 19.8 25 35 59 120 176 228 366 525 952
Pressure Regulating for Steam Distribution
High Pressure/Low Differential Pressure Regulating
For use with Self-contained, Pneumatic or Electronic Pilots
Valve Ends Pressure Temperature
Class 250 NPT 250 (17.2) @ 450 (232)
B16.1 Class 125 Flanged 125 (8.6) @ 450 (232)
B16.1 Class 250 Flanged 250 (17.2) @ 450 (232)
B16.34 Class 300 NPT 300 (21.0) @ 600 (315)
B16.34 Class 150 Flanged 150 (10.3) @ 500 (260)
B16.34 Class 300 Flanged 300 (21.0) @ 600 (315)
Other pressure/temperature ratings available; consult factory.
Maximum downstream pressure is 300 psi.
Canadian Registration # OC 0591.9C
* When installed according to factory specifications.
Pressure Regulating for Compressed Air Distribution
Pressure Regulating for Gas Service
Maintain Back Pressure or Differential Pressure
For use with Self-contained, Pneumatic or Electronic Pilots
Single Point or Multiple Use Applications
Valve Ends Pressure Temperature
B16.4 Class 250 NPT 250 (17.2) @ 200 (93)
B16.1 Class 125 Flanged 125 (8.6) @ 200 (93)
Other pressure/temperature ratings available; consult factory.
Canadian Registration # OC 0591.9C
(203) — (483) (508) (508) (549) (572) (292) (391) (438) (705) — (1445) (1540) (1617) (1562) (2354)
5/8 25 25 — 28 133/4 — 233/8 361/4 — 1260 1240 1430 1300 —
(254) — (600) (635) (635) — (711) (349) — (594) (921) — (2772) (2728) (3146) (2860) —
1/2 28 28 — 33 157/8 — 251/4 411/2 — 2070 2060 2145 2140 —
(305) — (673) (711) (711) — (838) (403) — (641) (1054) — (4554) (4532) (4719) (4708) —
