Lot 180MW 650NM red high power burning laser diode pro.

Lot 180MW 650NM red high power burning laser diode pro.

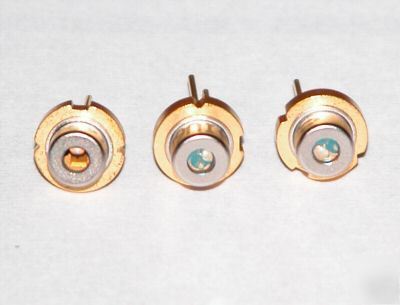

Real 100mW CW (180mW Pulse) 650nm Red High Power High Speed Sony Laser Diode
There are countless uses for a small compact HIGH POWER RED laser, such as HOLOGRAPHY, LASER LIGHT SHOWS, High Speed Communication, Medical, etc...
It can light cigarette and punch vinyl immediately.
They are rated for Class IIIb 180mW @650-660nm pulse capability and 100mW CW developed for DVD RW 16x speed.
These are brand new and remove from the laser diode factory sealed package of 100.
Laser Diode Data Sheet : http://www.zet.biz
It have enogh power margin(I didn't guarantee but can easy drive 150mW light power).
・AlGaInP quantum well structured laser diode
・Rediant power output Pomax 100 mW(CW)
180mW pulse (250mW capability-my check)
・Operating temperature Topr - 10 to + 70 ℃ (CW)
・Storage temperature Tstg - 40 to + 85 ℃
You Are over 18 and know the potential hazards inherent in high power laser equipment.
You WILL use this device in a safe and sane manner for a legal purpose
You Accept this item as a COMPONENT for integration in a system of YOUR OWN design and will hold the SELLER LEGALLY harmless from any and all LIABILITY
Korean must read : http://www.zet.biz/KR/index.html
You know the electronic safety precautions necessary with this item and therefore accept it AS IT IS as an EXPERIMENTAL COMPONENT without warranty.
You must compare laser efficiency and model and size of laser before purchase it.
All laser diode manufactures recommand the laser diodes best operation condition to there data sheet as Vop and Iop.
Good laser efficient diodes(low voltage, low current, high power) are very expensive than low efficient diodes.
If good laser efficiency it will not so much heat and don't need comarable big heat sink, and compareably increase life time of laser diodes.
Before purchase laser diode, you can learn about laser from Sam's Laser FAQ(http://www.repairfaq.org/sam/lasersam.htm).
And for laser diode purchases.(http://www.repairfaq.org/sam/laserlps.htm#lpstoc)
"The absolute maximum output power may be advertised but a laser diode really cannot be run at this level without a proper driver circuit, cooling, and a calibrated laser power meter to set it up - else bye-bye laser diode".
For order optional Driver or housing, please leave message to me after pay.
This board can insert to blank housing.
Size 16 x 10 mm- Board pattern can be change.
Pin from left up to down; +V Input, GND, -Disable(default enabled)
Right up to down; +V output, GND.
Optional 167mA output switch mode constant current driver 6-15V input - $30.
Also can order other constant curret value from 100mA to 1.5 A- Ask before order(can set to near order value-fixed).
Switching power supply for this driver(no casing like this module) can purchase at additional cost $20.
Laser Beam Example From This Diode Module with 2.85V Driver Board
Visit http://www.Zet.Biz for more picture.
Option : $10 per One Collimator Housing Blank Only Laser Diode Not installed
