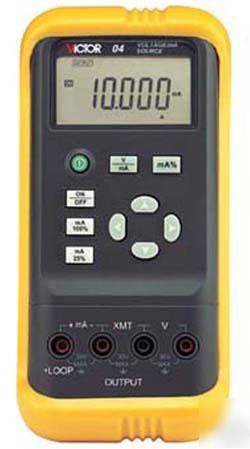

Process calibrator VC04
Process calibrator VC04
From: Daphne Collins
Subject Process calibrator VC04
â— Power supply: 9V battery (ANSI/NFDA 1604A or IEC 6LR619V alkaline)
â— Battery life: ca.12 hours under the conditionof 10mA
â— Max. permitted voltage: 30V(between any two terminals or between any terminal and earth ground)
◠Operating temperature: 0℃ to 50℃
◠Operating relative humidity : ≤80﹪RH
◠Storage temperature: ≤-10℃ to 55℃
◠Size: 200×100×40 mm(with holster)
â— Accessories: operation instruction, a set of CF-36 industrial test lead (with
alligator clips attached to probes)
â— Option: AC power-supply adapter (VCPS), industrial test lead (CF-31-A with probe clips)
â— Safety: Certified as compliant to IEC1010 provisions ( Safety standard issued by International Electrotechnical Commission)
Output Function & Specification (applicable to temperature range from 18 to 28 ℃ ,within one year after calibration).
Notes: 1.When the battery voltage exceeds 6.8V, the maximum load is 1KΩ at 20mA. When its voltage lies between 5.8V and 6.8V, the maximum load is 700Ω at 20mA.
2.Temperature coefficient: ±0.005% of range per ℃ for the temperature ranges 5℃ to 18℃ and 28℃ to 50℃.
All our Calibrators are provided one year warrantee by us from the date you make a purchase. An replacement or repairment will be provided by us for free when a faulty is developed within the warrantee.
Contact: D_collins@rockford-industrial.com (Daphne Collins)
