New bench top cnc mini mill X2

New bench top cnc mini mill X2

We now include a Steele Company Belt drive kit! We like these kits so much We've decided to include them with each X2 we sell.
* The 3 Axis X2 CNC Mill upgraded with precision Ball screws, homing switches, and R8 Spindle.
* Syil America is the ONLY source of the Syil X2 conversion. If you get an offer for one elsewhere, it's a scam..
* X, Y, Z axis are all updated with precision ball screws, heavy duty bearings and direct drive couplers, All providing a very high localization accuracy and repeatability.
* It has three Nema 23 high speed stepper motors for the X, Y, and Z axis .
* Travels X= 9.1" , Y= 3.4" , Z= 8"
* Table size: 15.75" X 3.65"
* The Nema 23 stepper motor is elegantly installed in the top of the machine, directly linked to the Z axis ball screw. This installation has superior accuracy over other conversion plans. Even better, it doesn't take any extra space on the back of the mill.
* All the stepper mounts and ball screw mounts are made of high grade steel, by EDM machines, providing better precision and rigidity over other plans using aluminum.
* The X, Y axis steppers are covered and protected from chips. The Z axis stepper is completely protect in the top of the Mill.
* R8 Spindle with variable speed motor. Gear low/high range selectable from 0-1100 / 0-2500.
* high quality switches are installed in every axis as the limit/origin check switches. They have great accuracy and provide a machine coordinate system just like real industrial machines.
* NC system power supply: (1) 500W switching power supply to supply the three stepper motors. With room to spare.

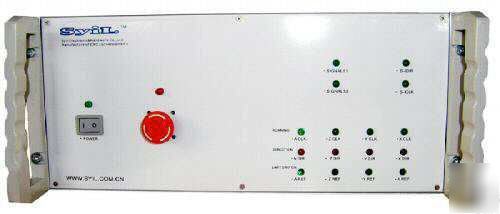

* For the NC control system, we use a stand alone control box for the X2. It contains the CNC interface board and three stepper drivers, which provide multiple functions such as STEPPER FREE, EMERGENCY STOP, LIMIT/TOOL ADJUST SENSORS, SPINDLE CONTROL, HALF DRIVE CURRENT, OVER-THERMAL PROTECTION, etc.
* The Stepper drivers provide step subdivisions up to 100, Creating the performance close to a servo system. We recommend you use the system with controller software such as MACH, KCAM4, etc.
* To increase dissipation of heat from the electronics in the control box, we've added a 12CM fan into the control box. So you don't need to worry about the temps in almost any workshop.
* Syil America is the ONLY source of the Syil X2 conversion. If you get an offer for one elsewhere, it's a scam..
* All exposed wires are covered by plastic corrugated pipes to keep everything neat and tidy.
* The Z axis hand wheel has been replaced with a switch that you can use for various options, such as coolant control, stepper free, or an additional EMERGENCY STOP.
Please Contact Us with any and all questions!!
Syil America is the ONLY source of the Syil X2 conversion. If you get an offer for one elsewhere, it's a scam..
