Axis Automation Cnc Plasma Cutting System
· Precision US made planetary gear boxes
· 250 W to 400 W dc servo motors depends on table size
· Linear rails on X (twin 15mm) one (20mm) on Y
· 12’ Deep down draft table with 12” outlet
· All parts machined after welding
· Replaceable Individual slats (max table wt 5000 lbs.)
· Enclosed cable carriers on X and Y
· Automatic torch height control included on all models
· Microsoft Windows® XP Professional Operating System
· Dual Microprocessors, one processor dedicated for Windows-1.3 GHz Intel
· Celeron M processor and the other microprocessor for the motion for true multitasking capabilities
· Upgradeable for Productivity Tools and Auto Nesting add on
· 20-Gigabyte Lap top style Hard Drive or larger
· Network Card with RJ45 connector – LAN connection
· RS-232 9-Pin D-Sub Connector
· Comprehensive software package with no secondary software needed
· Row & Column Nesting Parameter Quick View Screen – verify or change most commonly used parameters
· Parameter Quick View Screen – verify or change most commonly used parameters
· Cutting Parameter Database – allows operator to build a database of cutting
· Parameter settings based on material, thickness and cut process
· Trial Run and Shift Program feature
· Suspend current cutting and Save Job, return to saved job, and select new piercing point
· Readjust Cut Parameter Screen – Change parameters while cutting
· DXF Converter - easily converts CAD drawings (DXF files) to cutting programs
· Standard Shape Parts Library
· EIA Code Reader - easily reads existing code from competitive controllers or software
· Piercing Tool – change pierce locations with “point & click” ease
· Selectable Lead in & Lead outs on DXF files and Macro Shapes
· Rotate, Mirror, Copy, Zoom & Measure tools
· Change compensation side or cutting directions
· Optional nesting and job costing software
Machine shown with optional high definition plasma system.
Other table sizes available 4x8,6x12 and 5x20 and water tables.
Vist us on the web at:

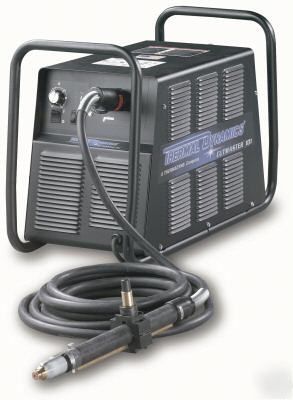

Many Plasma options available from 80 amp std. plasma to 275 amp hi definition plasma call today to price your application.
Lease options available for more information call (***)-382-8785
Delivery time can run 1 to 6 weeks and are FOB from our factory in Henderson, NV.
