WESTFLEX WR-401RADIAL ARM ROUTER/SHAPER SYSTEM
* Cuts any shape part from sheet marerial.
* Standard machine will cut 48" round.
* Can easily be extended to produce larger parts.

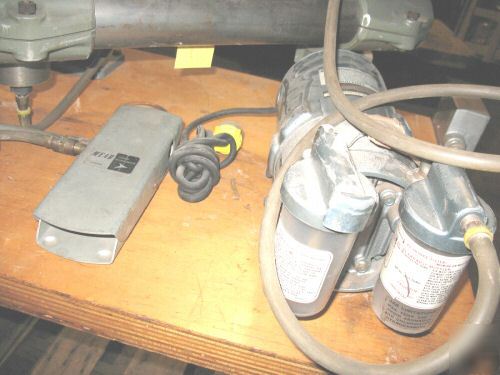

Upper radial arm with router motor bracket, vacuum arm assembly with 36" column, 9" vacuum cup, rotary joint, 18" hand wheel mounted to vacuum column, 1/6 hp vacuum pump and motor.
Electric outlet box for plug-in of router motor includes switches.
Machine table with 1-3/4" worktop completely machined for mounting all standard and optional componets plus 2 heavy duty welded steel ends.
Circle cutting unit includes two rods with mounting brackets.
* Radial arm and integral vacuum clamp assembly permits simultaneous cutting out and shaping parts, plus profiling of edge, from 2" to 10' in a single, continuous, rapid operation, using an unskilled operator. Saves time, increases production, eliminates rejects.
* Use on any sheet material....wood, plywood, plastics, particle board, fiberboard, hardboard, laminates, aluminum, brass.
* Vacuum clamp for rapid, safe holding of workpiece... does not mar or damage work surface...permits full 360 degree rotation of part.
* Produces extraordinarily smooth cuts...eliminates most secondary sanding an/or grinding of parts.
* Designed to be used with any standard router motor (i.e. Black & Decker, Stanley, Rockwell, Milwaukee, Skil electric and air router motors).
* Costs far less than routers of similar capacity.
* Safe...hands kept far from cutting action.
* Rugged construction, designed for continuous production.
* Many low cost optional attachments add to machine versatility. Easily adaptable to shaping, slotting, grooving, boring, dovetailing, champfering, of parts from 2" to 10 ft.
Using the Wesflex WR-401 Radial Arm Router/Shaper, an unskilled operator can rout out and simultaneously edge profile part in seconds. Precise duplication of template is assured on a high production basis...machine virtually eliminates rejects.
A simple template of any rigid material (i.e. plywood) made to the exact shape and size of the desired piece is used. Template can be bolted or held by vacuum that also holds workpiece.
With both hands on the handwheel or workpiece at maximum distance from the cutting action, the operator simply moves the vacuum arm so that the bearing on router bit stays in contact with the template as the work is fed. The piece is thereby cut out and profiled in a smooth, continuous operation.

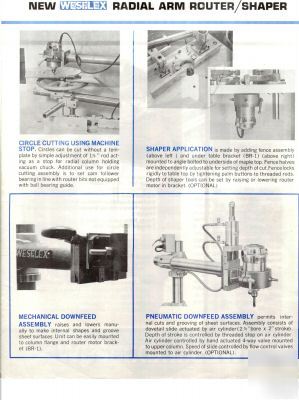

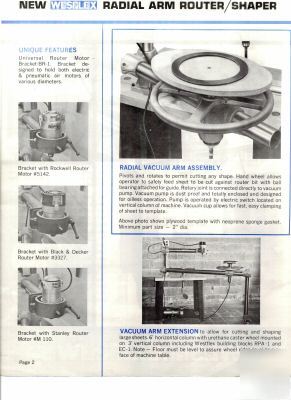

Included with the photos are the pages of a brochure that comes with it, showing it with a router
Add a router and you get...........
A MONSTER BARGAIN FOR SHORT MONEY!
