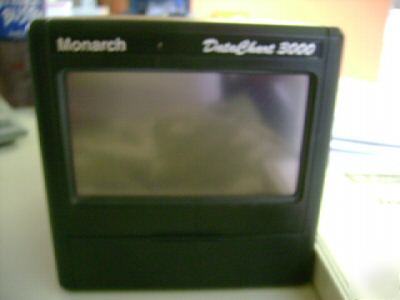

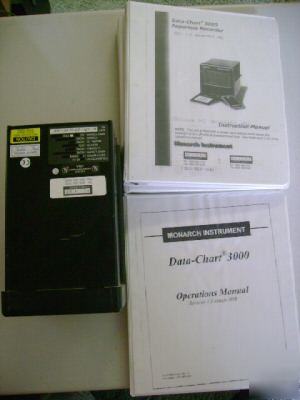

Monarch data chart 3000 monovideographic recorder

Monarch data chart 3000 monovideographic recorder

Measurement Recording and Display Rates
Choose 3, 4, 6 or 8 universal, isolated direct inputs plus computation channels for a total of 15.
* Measurement types: linear, square root, log linear. T/C, RTD, frequency/pulse, calculated, conditional, dry contact and external via serial cornrnunications port.
* 3 scaleable voltage input ranges: +/- 100mV +/- 1 Volt and +/- 10 Volts.
* Current Ranges: 4-20mA and 10 - 50mA with internally switched 50 ohm shunts.
* Thermocouples: B, C, E, J, K, R, S, T, Nickel/Nickel Moly and Nicrosil-Nisil.
* RTD's: 10 ohm Cu, 100 ohm Pt 385. 100 ohm Pt 392, 200 ohm Pt 385, 200 ohm Pt 392 and 120 ohm Nickel.
* Easy setup and versatile scaling.
5 inch bright CCFL backlit LCD display with rugged Touch Screen makes set up and operation simple. Browse data file information from RAM or disk while recording. Real Time or historical data review.
- Graphic trend - vertical or horizontal
- Bargraphs - vertical or horizontal
Isolated input modules coupled with a fast 16 bit A/D converter provides voltage measurement accuracy of +0.05%
Measurement Recording and Display Rates
* Each channel is measured four times per second (250mS).
* Recording rates are independently selectable in 1 second intervals for each channel and range between 4 per second to 1 every 10 minutes
* Data display update rates are selectable from 0.25 to 60 seconds.
* Virtual chart speed is selectable from 0.5in to 600in/hr (10mm to 15000mm/hr).
* The modular design of the DC-3000 allows options to be added in the field quickly and easily.
* Data-Chart Paperless Recorders and Accessories have a full two year comprehensive warranty.
· Menu selectable via intuitive Touch Screen
· Selectable signal input type and range.
· Application dependent scale ranging (up to + 5 digits).
· Selectable signal filtering.
· Engineering units - up to 5 character alphanumeric.
· Point tag - up to 10 characters (6 displayed).
· Program for normal or alarm/event triggered recording mode.
· User selectable multilevel passcode protection.
* Math functions include +, -, x, +, square root, totalization, moving average, timed average, delta, gated timer, peak. valley, logarithms, algebraic equations, conditional statements and 12 programmable constants.
* Minimum of 6 computation channels available.
* Computation channels can be displayed, recorded and alarmed.
* 3,5inch floppy disk (1.44Mbyte capacity, IBM format)
* PCMCIA memory card (Flash to 220 Meg).
* Internal 128K RAM buffer provides historical data review on site while still recording real time information. optional expansion to 512K RAM is available.
* Search data files by date/time or signal value.
* Transfer data files to IBM compatible PC's via serial communications port.
* Independent data files for up to 12 channels, alarm/event file and configuration files.
* Customize file names for each recording session.
* Review historical information while recording in real time
* Fill to end mode with user selectable disk full alarm.
The following functions can be controlled via external inputs or internal alarms
5 alarm set points per channel (60 total) include: high, low, rate of change. true, false and abnormal signal conditions.
Latching, non-latching, failsafe, reflash and acknowledge.
· RS232 bi-directional with modem support.
· RS4SS network port - address up to 31 units
· Real time and data file transfer to IBM compatible PC's.
· User selectable baud rates from 300 to 19,200bps.
