From: Megan Baxter
Subject Ge magne-blast circuit breaker 1200 amp max volt 4.76KV

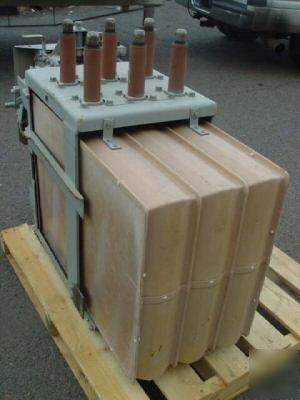

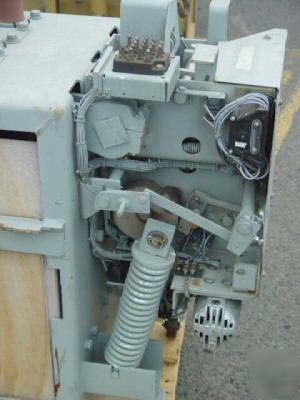

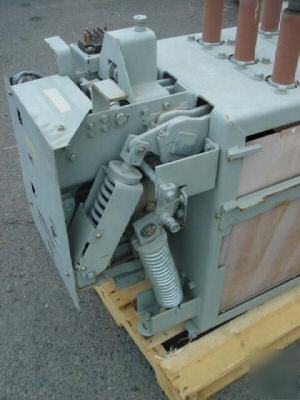

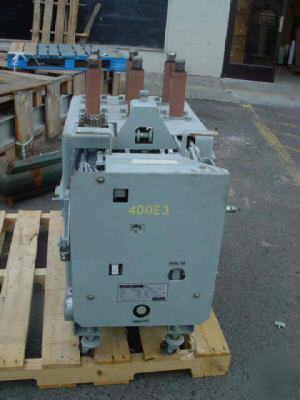

THIS IS A NICE GE MAGNE-BLAST CIRCUIT BREAKER CME OUT OF A WORKING ENVIROMENT
* RATED SHORT CIRCUIT AMPS 29 KA
* RATED VOLTAGE RANGE FACTOR 1.24
* CLOSE & LATCH CAPABILLITY AMP 58 KA
* CLOSING COIL 6174582G1 VOLTS 125
* CLOSING AMPS 6DC VOLT RANGE 90-130
* POTENTIAL TRIP COIL 6174582G1
* VOLTS 125 AMP 6DC VOLT RANGE 70-140
* CONNECTION DIAGRAM 227A1000 P41
Contact: Megan_baxter@rockford-industrial.com (Megan Baxter)
