Anatel a-1000 analyzer system S20P toc c-80 sensor

Anatel a-1000 analyzer system S20P toc c-80 sensor

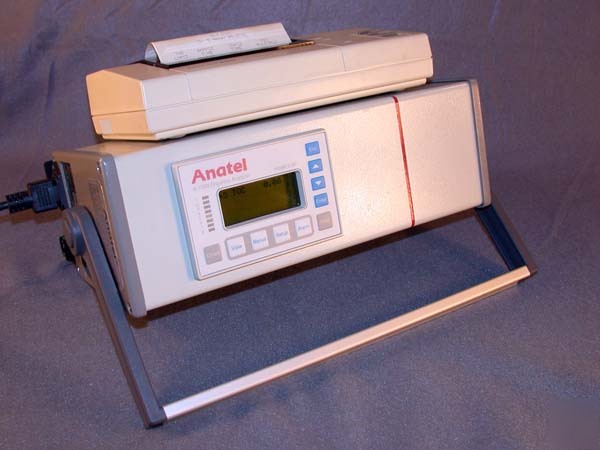

Complete with S20P Sensor, C-80 Controller and DPU-411 Type II Thermal Printer
In excellent working and physical condition.
Sold with a 7 day right of return.
Click thumbnails below to view larger images.
DSCN0859DSCN0863DSCN0866DSCN0865
DSCN0873DSCN0875DSCN0877DSCN0878
The Model S20P Sensor combines a C80 Controller, handle, feet, the standard Model
S10 Sensor and a 40-column thermal printer to provide a complete and integrated
portable TOC analysis system.
Operating Range 0.05 to 9999 ppb as carbon
1.0MW -cm for neutral waters
0.2MW -cm for water with CO2 as sole conductive species
Ambient Operating Temperature:
S10 Sensor: 5°C to 40°C (41°F to 104°F)
S20/S20P Sensor: 5°C to 35°C (41°F to 95°F)
Sample Water Temperature: 0°C to 100°C (32°F to 212°F)
Inlet Pressure: 100 psig maximum(690 kPa)
Purge ( Resistivity / Conductivity ) Mode -
Resistivity: 0.01 to 18.2 MW-cm
Conductivity: 0.05 to 100 microsiemens/cm
Temperature Compensation: To 25°C over entire range of 0°C ~100°C (based on a NaC1 model)
Display Resolution: Three significant figures as resistivity
Four significatant figures as conductivity
Accuracy: ±3% over 0°C ~100°C range
Maximum C80 Controllers(any configuration): 8
Maximum Network Length: 3000 feet (1 km)
Network Cabling: Shielded Twin-axial, Twist-Lock BNC
The Model C80 Controller provides multiple Sensor display, individual instrument setup, system alarm indication and printer control functions for up to 8 Sensors via an RS485 Network.
C80 Controller P/N FG 1000301[ 120 VAC, 60 Hz]
P/N FG 1000301[ 230 VAC, 50 Hz]
Main: 4-line x 16-character Super-Twist LCD
Channel: 8 Bi-color(red/green)LCDs
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Case: ABS front panel with Lexan overlay
Size: 120mm L x 81mm W x 48mm D
(4.7-inch L x 3.2-inch W x 1.9-inch D)
2.5-inch total depth behind panel (allow 4-5-inch to avoid crimping)
Communications: Shielded Twin-axial, Twist-Lock BNC
Power: 9 VDC Wall-Mount Power Pack
(120 VAC, 60 Hz standard, 230 VAC, 50 Hz optional)
