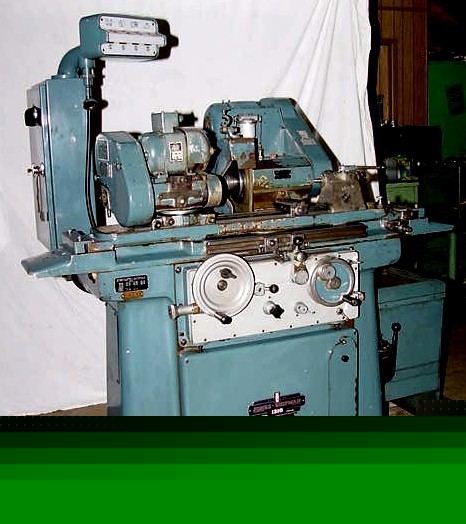

8" x 18" jones & shipman 1310 universal id/od grinder

8" x 18" jones & shipman 1310 universal id/od grinder

Used Machinery and Machine ToolsUsed MachineryUsed Machine ToolsThousands of Used Metalworking and Plastic Machines & New Machine Tools Photos, Full Descriptions and Prices - Fast & Easy
* Manual Lathes, Mills, Drills, Saws
* Grinders, Hones, Finishing
* Ovens, Furnaces & Environmental
UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER
MODEL: 1310 S/N: 65823 NEW: 1968
MAXIMUM SWING ..................................... 8"
DISTANCE BETWEEN CENTERS .......................... 18"
CLOCKWISE ................................ 19 DEGREES
COUNTERCLOCKWISE ......................... 20 DEGREES
LONGITUDINAL TABLE SPEED (HYDRAULIC) ... 3" TO 144" IPM
MANUAL TRAVERSE, HANDWHEEL PER REV. ............. 0.50"
FINE HAND TRAVERSE KNOB GRAD. ................. 0.0005"
FINE HAND TRAVERSE KNOB PER REV. ................ 0.01"
CROSS FEED HANDWHEEL GRAD. .................... 0.0002"
ONE DEPRESSION OF FINE FEED LEVER KNOB ........ 0.0001"
AUTO INFEED @ TABLE REVERSALS ...... 0.0001" TO 0.0006"
REDUCTION IN DIAMETER .............. 0.0002" TO .0012"
CONTINUOUS (PLUNGE) INFEED RATE ..... 0.0001" TO .0006"
(PLUNGE) REDUCTION IN DIA. FROM ... 0.004" TO .072" IPM
MAX. RANGE OF PLUNGE INFEED ... 0.8 REV. OF THE HANDWHEEL
WHEELHEAD SLIDE ADJUSTMENT ....................... 7"
SWIVEL OF WHEELHEAD (EIU TYPE)............. 360 DEGREES
WHEEL SIZE .............................. 12" X 1" X 5"
WHEEL SPEEDS (2) .................... 2,000 & 2,650 RPM
WHEELHEAD MOTOR ................................ 2.0 HP
WORKHEAD SPINDLE SPEEDS (6) ............. 36 TO 500 RPM
WORKHEAD SPINDLE TAPER ........................... #3MT
APPROXIMATE DIMS. OF MACHINE .................. 66" X 48"
APPROX. FLOOR SPACE REQUIRED FOR OPERATION .... 80" X 54"
APPROX. MACHINE WEIGHT ........................ 4,000 LBS
SWING AROUND INTERNAL GRINDING ATTACHMENT
HYDRAULIC OPERATION FEATURING:
FINE FEED MECHANISM FOR INFEED OF WHEELHEAD
FINE FEED KNOB FOR TABLE TRAVERSE
DUAL LIVE/DEAD WORKHEAD SPINDLE
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
Machine Location: HARRISON, NJ
