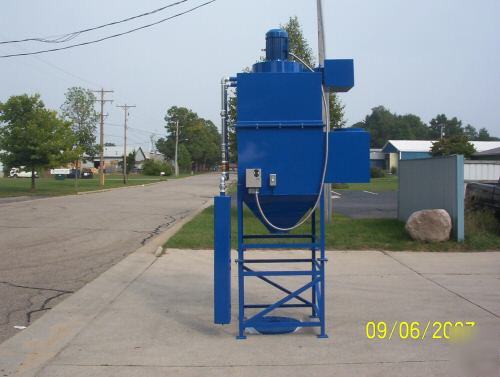

This listing is for a new 2500 cfm, pulse clean, cartridge dust collector. The cartridge dust collector is an excellent choice to replace the common bag-house or dust bag type collector and can be used to collect almost any dry, fine dust particulate. The cartridge offers a large amount of cleaning filter material in a very compact area. Cartridge dust collectors take up much less space than bag house collectors and offer an exceptional filtration efficiency of 99.7% against 1/2 micron particles. This allows for in house venting in most applications that do not produce noxious or poisonous gases. A cartridge will often deliver 30 times the filtration efficiency of the common dust bag.
The collector was designed with a 12 inch diameter, abrasive resistant, inlet to extend the filter life. The filters are cleaned with a reverse pulse of compressed air as necessary. The reverse pulse is manually actuated with one of two, 1 1/4 ball valves located on the front of the unit. Pulse cleaning can be performed at any time during operation to increase air flow or after the system is shut down. This unit is designed to deliver optimal performance when dust cake levels of 40-80-120 pounds or less are accoumulated in between pulse cleaning intervals. It is equipped with an acoustical dampening package that will meet or exceed all noise level requirements per osha specifications.
The vertical placement of filters allow for the best possible release and removal of dust from the pleated filters with one reverse pulse. Two filters are cleaned at a time. It has four 99.7 % efficient cartridges that contain 904 square feet of total cleaning surface area. Each 26 inch long and 12.75 inch diameter filter cartridge has pleats that are 2.375 inches deep. The center opening of the filter is 8 inches in diameter and is open on both ends before installation.
Currently, it is offered with a 5 hp, (208v - 230v / 460v) 3 phase TEFC motor as standard equipment (14 - 12 / 6 amps). It is also available with Csa or EU certified motor and voltages as required. The approx. dimension of this collector is 11 ft. high, 4 ft. wide and 4 ft. deep. It comes with a barrel kit for 55 gallon drum disposal.
This unit is equiped with our VFD electrical package that includes the following:
1. Soft motor starting: The amperage draw will not exceed the motor name plate rated amperes at any time. This reduces the initial cost of copper wiring because it is no longer necessary to consider the initial startup load. The initial startup requirements may exceed 5 times the rated name plate amperes when hard starting a variable torque application like high speed impellers. This requires oversizing of electrical wiring, fuses and breakers to prevent motor starvation and premature failure of electrical components on startup.
2. On-Off Switch: Conveniently located on the dust collector, this is a simple 24 volt relay loop that engages the variable frequency drive with the push of a button. After the start comand is triggered the motor will ramp to maximum velocity over ~ 30 seconds. When the stop command is received the unit will again decelerate over ~ 90 seconds and come to a complete stop.
3. Thermal Motor Protection: The motor drive will constantly monitor the motor and the drive itself for any unusual spike in temperature throughout. If the temperature rises above acceptable perameters the drive will default and shutdown before any damage to the unit is sustained.
4. Motor Fault and Report Monitoring: The motor drive is capable of displaying motor torque, hours of operation, actual amperage draw, percentage of motor capacity used, percentage of drive capacity used, the motor frequency in hertz, delivered line voltage and several other programable LED display readouts. Factory settings are always in hertz frequency unless specified otherwise.
5. Automatic Load Compensation Controls: The motor drive is programed to compensate for changing load conditions. These conditions include but are not limited to extended length or reduced diameter of piping, blast gates and other restrictions in the air lines, atmospheric humidity, temperature and altitude adjustments, filter cartridge dust cake levels, and power supply brownout or overcurrent conditions. With our VFD electrical package these conditions are corrected automatically through direct motor communication with the drive system. As a result, if the cfm should fall below rated levels, the motor drive will increase the motor speed to correct for this condition. The speed of the motor will continue to increase until 150% of the rated water column vacuum is achieved to restore air flow and maintain 100% load on the motor. The LED display will show this reading in real time with .1 hertz accuracy. This reading can also be used as a baseline to determine the most effective time to pulse the filters. We highly recommend the use of this system when possible. This can only be used when unit is placed inside as the contoller has a Nema 1 electrical rating.
