Tektronix TDS684A Color 1 GHz BW, 5 GS/sec Real-Time Digitizing Oscilloscope, 4 Channels
* 5 GigaSamples/sec on all 4 channels w/ 1 GHz bandwidth each
* 15,000 samples per channel
* NIST-traceable calibration w/ test data, dated 6/22/07
* Tektronix Reconditioned Equipment
* 05 - Video (TV) Trigger (NTSC, PAL, HDTV, Flexformat)
* 13 - RS232 and Centronics Interface
* 1F - 3.5" Floppy Drive (MS-DOS compatible format)
* 2F - Advanced math option (includes FFT w/ various windowing functions)
* Two P6245, 1.5 GHz bandwidth, active SMT probes w/ accessories
* Two P6243, 1 GHz bandwidth, active SMT probes w/ accessories
* One P6231, 1.5 GHz bandwidth, variable offset active probe w/ accessories
* Four P6139A, 500 MHz bandwidth, passive probes w/ accessories
* Video Display Clamp, Tektronix P/N: 013-0278-00
* Top-mounted accessory pouch
* Protective front panel cover
* Complete set of Tektronix manuals on CD
* Certificate of NIST-traceable Calibration w/ test data, dated 6/22/07
* 5-day Right-of-Refusal/Right-of-Return (RoR)
Serial number: B010298, Firmware version: v1.1e.
The instrument is a Tektronix Model TDS684A, 4 channel color, 1 GHz bandwidth, 5 Gigasample/sec, Color Real-Time Digitizing Oscilloscope in 100% functional condition and excellent cosmetic/physical condition. This unit comes with four Tek P6139A, 500 MHz bandwidth, passive probes, two P6245 active FET, SMT, 1.5 GHz bandwidth probes, two P6243 active FET, SMT, 1 GHz bandwidth probes, one P6231 active FET, variable offset, 1.5 GHz bandwidth probe, one Video Display Clamp, tek P/N: 013-0278-00, and a 5-day right-of-refusal/right-of-return (RoR). Also included is a protective front panel cover and a CD with all pertinent documentation including: user manual, programmers manual, reference manual, service manual, and programming examples. The unit passes the self-test diagnostics, signal path compensation, probe calibration, and scope calibration. The unit has been reconditioned by Tektronix, thoroughly checked out by a qualified service technician, and has a fresh NIST traceable calibration by Instrument Calibration and Technical Services, Inc. (http:// ). The TDS684A has the following product specifications and features:
* Total Channels: 4 channel color
* Sample Rate (all channels simultaneously): 5 Gs/s
* Acquisition modes: Sample, Envelope, Average
* Real-Time Bandwidth: 1 GHz
* Trigger Modes: Edge, Logic, Pulse, and Video (Option 05: NTSC, PAL, HDTV,and FlexFormats)
* Maximum Record Length per Channel: 15,000 pts
* Vertical Resolution: 8 bits; >11-bits with averaging
* Time Measurement Accuracy: <50 ps @ 5 GS/s
* Advanced Waveform DSP Math Option 2F: FFT, Integration, and Differentiation ( FFT algorithm provides Rectangular, Hamming, Hanning, and Blackman-Harris windowing functions)
* Disk Drive - 3.5" floppy drive for waveform hardcopy, capture, and recall (Option: 1F)
* RS-232 & Centronics Printer Port
* Time Bases: Main and Delayed
* Time/div Range: 200 ps/div to 10 s/div
* Record Length per Channel: 500 to 15,000 pts
* Vertical Sensitivity: 1 mV/div to 10 V/div
* Bandwidth Selections: 20 MHz, 250 MHz and Full (1 GHz)
* Input Impedance Selections: 1 Mohm in parallel with 10 pF, or 50 ohm (AC and DC coupling)
* Input Coupling: AC, DC, or GND
* 25 Automatic Measurements: (display up to four at one time) Period, Frequency, Positive Width, Negative Width, Rise Time, Fall Time, Positive Duty Cycle, Negative Duty Cycle, Delay, Phase, Burst Width, High, Low, Max, Min, Peak-to-Peak, Amplitude, Positive Overshoot, Negative Overshoot, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area
* Cursor Modes: Independent, Tracking
* Cursor Measurements: Time/Frequency/Amplitude
* Waveform Math: Invert a single waveform and add, subtract, multiply, and divide two waveforms
* Advanced math option: inversion, integration, differentiation, and FFT spectral analysis of selected channel (Option: 2F)
* Capture and display one to four reference waveforms for comparisons and waveform math
* Intuitive graphic icon operation blended with the familiarity of traditional horizontal and vertical knobs
* Full GPIB software programmability via GPIB IEEE STD 488 Port
* RS232 and Centronics Interface (Option: 13)
* On-line help at the touch of a button
* 90-250 Vac; 47-63 Hz operation
* Weight: 27 lb (37 lb packed)
* Size: 193 mm (7.6 in) Height x 445 mm (17.5 in) Width x 432 mm (17.0 in) Depth

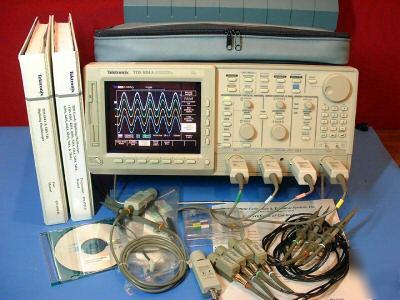

1. Tektronix Model TDS684A Color Digitizing Oscilloscope with Options: 05 13 1F 2F
2. Four Tektronix P6139A, 500 MHz bandwidth passive probes with ground leads, clips, and hook tips (high-speed probe accessories included- see pictures)
3. One Tektronix P6231 active probe w/ variable offset, 1.5 GHz bandwidth w/ accessories
4. Two Tektronix P6245 active FET probes, 1.5 GHz bandwidth, with SMT probe accessories.
* Two Tektronix P6243 active FET probes, 1 GHz bandwidth, with SMT probe accessories.
* One Video Display Clamp, Tek P/N: 013-0278-00
* Tektronix documentation (on CD):
* P6243 and P6245 User manuals
* Miscellaneous application notes and GPIB control software programming utilities (source code and executables)
* Certificate of Calibration w/ Test Data, dated 6/22/07
Right-of-Refusal/Right-of-Return (RoR)
Signal Path Compensation Internal Calibration:
FFT of channel 1 on bottom trace for 10 MHz signal:
