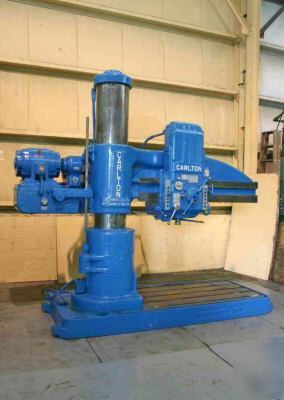

6' x 17" carlton radial drill #6 mt

6' x 17" carlton radial drill #6 mt

Photo Sharing and Video Hosting at Photobucket
SERIAL ................................ 3237
MODEL ................................. 3A
WORKING SURFACE OF BASE ............... 72" X 43-1/2"
SPINDLE SPEEDS ........................ (36) 12 TO 1200 RPM
FEEDS ................................. (18) .004 TO .125 IPR
TAP LEADS ............................. 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ........................ 20"
DIAMETER OF SPINDLE ................... 4"
TAPER IN SPINDLE ...................... #6 MT
DISTANCE SPINDLE TO COLUMN ............ 18" MINIMUM, 76" MAXIMUM
DISTANCE SPINDLE TO BASE .............. 15" MINIMUM, 70" MAXIMUM
POWER ELEVATION ....................... YES
POWER CLAMPING ........................ YES
POWER HEAD TRAVERSE ................... YES
MOTOR ................................. 15 HORSEPOWER
CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!!
