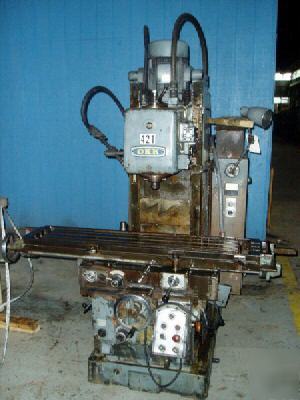

#MH2V OKK "BED-TYPE" VERTICAL MILL
Table Dimensions (Overall), W x L...... 11.37" x 51.62"
Table Longitudinal Travel (X-Axis)..... 28.375"
Saddle Cross Travel (Y-Axis)........... 10.25"
Spindle-Head Vertical Travel (Z-Axis).. 14.25"
Spindle-Center to Column............... 12.25"
Spindle-Nose to Table, Minimum......... 3.125"
Spindle-Nose to Table, Maximum......... 17.375"
Spindle Taper.......................... #50 NSTD
(12) Spindle Speeds, Range............. 60 to 1800 RPM
(12) Longitudinal and Cross Feeds...... .44 to 69 IPM
(12) Vertical Head Feeds, Range........ .18 to 27.6 IPM
Power Rapid Traverse, Long & Cross..... 125 IPM
Power Rapid Traverse, Vertical......... 50 IPM
Spindle Motor, Horsepower.............. 7.5 HP
Feed Motor, Horsepower................. 1 HP
Floor Space Required, W x D............ 5'10" x 6'2"
Overall Height......................... 8'3"
Weight, Approximately.................. 8300 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $2,450.00
All machines/equipment subject to prior sale.
