* Logus WR112 2x4 Waveguide Switch, 28V w/manual override

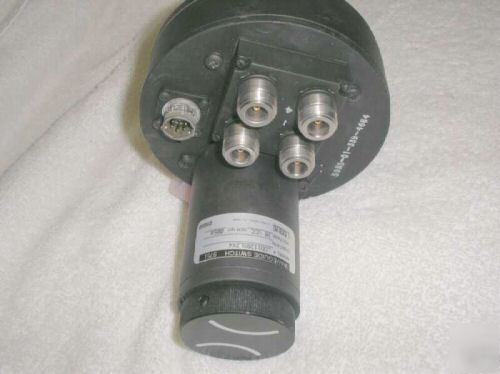

This is brand new, still in the original vacuum packaging. It has four ports, A,B,C and D, with two switch positions. In position A, (Pa->Pd)&(Pc->Pb) and in position B (Pa->Pb)&(Pc->Pd), essentially assigning two inputs (Pa,Pc) to either of two exclusive outputs (Pb,Pd), depending on switch position. This switch also has Type N female connectors that mimic the above logic.

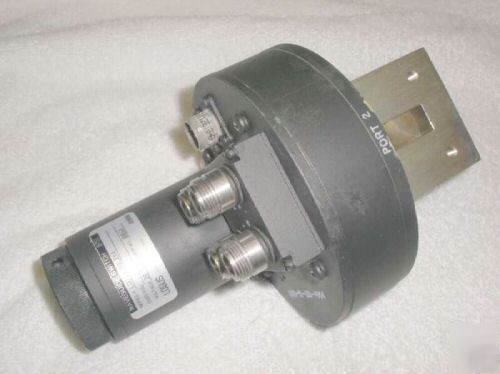

A six pin circular connector (PT06 type) with male pins provides both the switch select solinoids (28volt) and provide annunciator (indicator) outputs for switch position. The switch position may also be selected manualy using the top mounted dial. This switch is wired as:

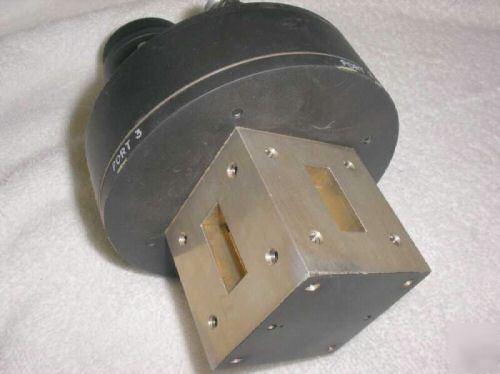

I am unsure of the specifics about waveguide ports, and only guess these are WR112 (7.05 to 10 Ghz), flat surface. Again, email me with any questions.
