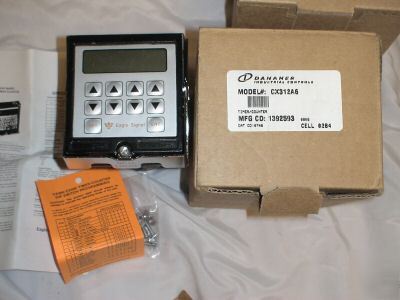

Danaher eagle signal model CX312A6 timer/counter

Danaher eagle signal model CX312A6 timer/counter

RETAILS FROM $414.00 NEW!!!!!!!!!!!!!!!!!!
I HAVE SEEN ONE FOR AS LOW AS $331.00
The CX300 is a microprocessor based timer/counter housed in a
standard 15 terminal CYCL-FLEX
® plug-in case which allows easy
removal for programming changes and replacement. Time or count
operation, time range, and the type of start input switch operation are
programmed with 7 miniature rocker switches located inside the unit
The front panel of the CX300 is a sealed membrane keypad which
provides excellent protection for most industrial environments. The time
or count setpoint is entered using the increment and decrement keys for
each digit position. The SET and ENT keys provide access to the
setpoint, as well as to the front panel programmable software functions.
These programmable functions control the pulse output length, setpoint
to zero or zero to setpoint cycle progress indication, and count input
scale factor. The software programming functions are indicated by
prompts to help the user program these functions without the need for
Keypad lock function allows viewing of setpoint, but does not allow
4 1/2 digit (19999) liquid crystal display - .5 inch high digits
Annunciators (right of the display) flash to indicate timing or counting
Two form C instantaneous contacts and two form C programmed
Five time ranges from 19.999 sec. to 199 hr.: 59 min.
Three count rate input rate speeds are programmable with a max.
count display of 19999 - can be extended via count input scale
24, 120, or 240 VAC operations
Count input available for 120 volt AC or low voltage AC/DC
When programmed as timer, count input circuit serves as time inhibit
Non-volatile memory data retention
