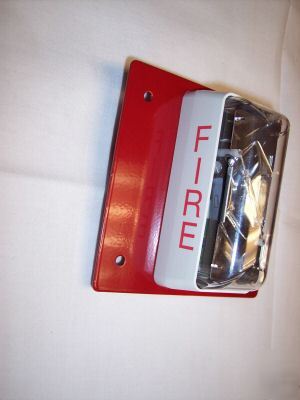

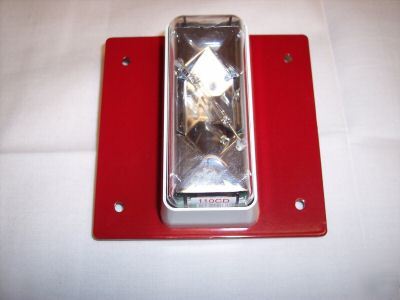

Edwards Fire Weatherproof Strobe Signals CS405 8A T
* Low current draw synchronous strobe
* Red flame resistant housing
* 15/75 candela output (-7A)
* Control modules not required
* Weatherproof when used with Cat. No. 449 back box
20 to 31V DC Continuous (Non-pulsed)
Synchronized at 1 fps. External control module necessary to meet
UL 1971 synchronization requirements of 10 milliseconds over a two-hour period.
Red "FIRE" Vertical Both Sides (Wall Mount)
Textured Color-Impregnated Noryl (Exceeds 94V-0 UL Flammability Rating)
Flush: 1-Gang (2" Deep Min.) Standard Electrical Box; Surface: 1-Gang Wiremold Box
85% Relative Humidity @ 86#&176;F (30#&176;C); 32#&176; to 120#&176;F (0#&176; to 49#&176;C) Variable Ambient Temp
*The 2440S & 2441S strobes are available with either a red faceplate or a white faceplate; for a red faceplate, put an "R" in this position and for a white faceplate, put a "W" in this position.
1The 2441S-110-* is available in 120V AC. Order 2440S-110R-N5 or 2440S-110W-N5.
2Use the mean current to establish the maximum number of strobes, wire gauge, and standby power requirements. 2400 Series uses 24V DC. FireShield uses 24V DC FWR.
3From a FILTERED DC source.
4From an UNFILTERED (Full Wave Rectified) DC source
