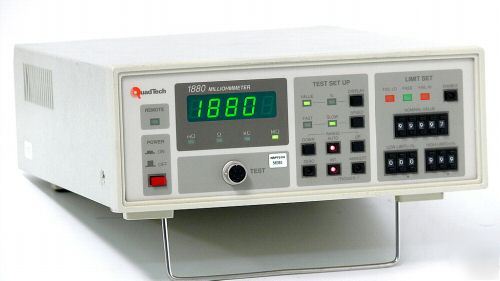

Quadtech 1880 Low Resistance Milliohmmeter
The 1880 Milliohmmeter provides ease of use, digital display and excellent accuracy for
performing low resistance measurements on switches, relays, connectors and a variety
of other devices. The instrument offers a wide measurement range, from 1 μohm to
2 Mohms, with constant current ranging from 1 A to 1 μA. A built-in comparator makes
the unit ideal for go/nogo testing in a production environment and is also adaptable
for use in automated system applications with it’s optional IEEE-488 interface
Precision Measurements: The 0.05% accuracy of the 1880 makes for consistent,
reliable test results from this economically priced unit. Nine measurement ranges,
automatic or manually selectable, provide wide coverage between 2 Mohms and 1 μohm
with constant current between 1 μA and 1 A.
Easy to Use The 1880’s auto ranging and digital display means the instrument is ready
to begin measuring on power-up, just connect the test device and meaningful results
Automatic Zeroing: The device under test (DUT) is connected to the instrument
front panel via a four-terminal Kelvin connection. This, along with the auto zero function
for removing any stray resistance, renders very accurate low resistance measurements,
independent of the test leads being used
Go/NoGo Testing: A built-in thumb wheel comparator for setting high and low limits
provides for fast, simplified, pass/fail testing in a high volume production environment. A
nominal value can also be set by the operator, where test results are shown as a positive
or negative percent deviation around this value

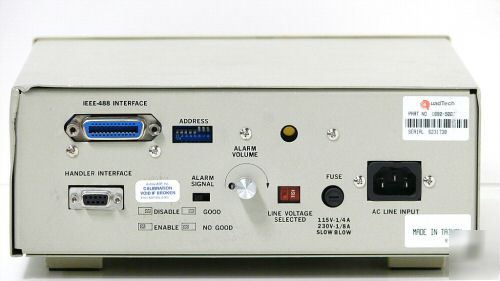

Automated Testing: For automated system applications, the instrument includes an
I/O interface connection with remote start and pass/fail outputs. An optional IEEE-488
Accessories included: Instruction Manual, US-type power cord.

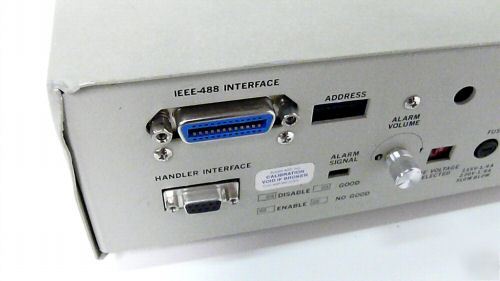

More about the instrument: Serial number: 6231730. As you can see in the pictures, it is in good condition although the case is dented on the rear corner, see picture #3. Operation of the instrument is not affected by the dent
Guaranteed to be clean and fully operational, with 14-day right of return
