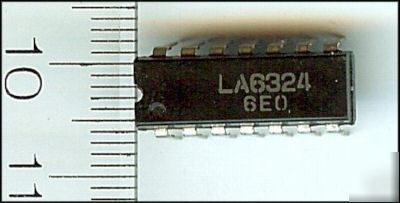

6324 / LA6324 / quad operational amplifier

6324 / LA6324 / quad operational amplifier

Now over 1,400 items in our Store!
Please note: The following spec sheet / information is provided by the manufacturer and may cover several different items and/or products. I am offering the part listed in the heading and picture ONLY.
The LA6324 consists of four independent, high-performance, internally phase compensated operational amplifiers that are designed to operate from a single power supply over a wide range of voltages. These four operational amplifiers are packaged in a single package. As in case of conventional general-purpose operational amplifiers, operation from dual power supplies is also possible and the power dissipation is low. It can be applied to various uses in commercial and industrial equipment including all types of transducer amplifiers and DC amplifiers.
No phase compensation required
. Wide operating voltage range: 3.0 V to 30.0 V (single supply) ±1.5 V to ±15.0 V (dual supplies)
. Highly resistant to dielectric breakdown
. Input voltage range includes the neighborhood of GND level and output voltage range VOUT is from 0 to VCC – 1.5 V.
. Small current dissipation: ICC = 0.6 mA typ/VCC = +5 V, RL = ¥
