600 ton farquhar ss hydraulic press 72" stroke 144" dlo

600 ton farquhar ss hydraulic press 72" stroke 144" dlo

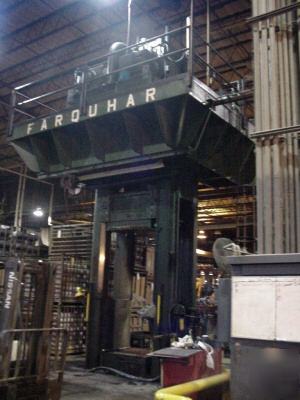

Used 600 Ton FARQUHAR Mdl. HS-600-H50-50 Straight Side Hydraulic Press; Serial #24793; Mfg. 1966
Welded Steel/Tie Rod Construction
Floor Standing (No Pit Required)
Bed Area............................................................ 50" x 50"
Ram Area:.......................................................... 50" x 50" (est.)
Distance Between Housing:............................. 56" (est.)
Stroke (adjustable):.......................................... 0 - 72"
Daylight Opening:............................................. 144" (est.)
Diameter of Main Ram (1):................................ 15"
Speeds (estimated):............................Closing: 800 I.P.M.
(variable volume radial piston type)
1-Oilgear Model D.M.-15025 Pump
(variable volume radial piston type)
Complete General Electrical Controls
150 Ton Hydraulic Lower Ejector; 36" Str. (est.)
Overall Dimensions: 8’ F-B x 7’ L-R x 30' High (est.)
Weight: 175,000 Lbs. (estimated)
F.O.B…..…………...............Ohio
