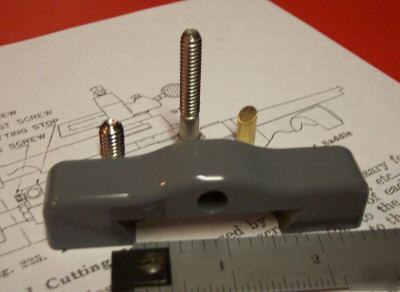

One threading stop that will fit South Bend 10K lathe. I am not sure what other lathes this stop might fit, however my South Bend catalog lists the same catalog number for 9" and 10K. This stop is made from very tough 2024 T351 aluminum, and comes with one stainless set screw and one stainless stop screw. The binding plug is made from brass. Also included is a photocopy of South Bend's instructions on how to set up and use the stop.
Threading stops are used to relocate the cross slide to the same point for each successive chip. The compound rest is used to dial in for additional chip.
Hint: Set the compound rest on 29 to 29 1/2 degrees to the right, ( to the right is facing the machine from the operator side, swing the tail of the compound to the right) for right hand external 60 degree threads.
