Kla-tencor omnimap RS35C four point probe (4-point)

Kla-tencor omnimap RS35C four point probe (4-point)

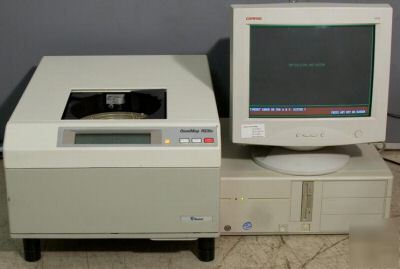

KLA-Tencor OmniMap RS35c Resistivity Mapping Four Point Probe for 200mm (8") Wafers
Specifications are from a 3rd party and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The unit powers up and seems to function but we do not have the facility requirements to formally test it. The computer is provided (the monitor and keyboard are not provided) however the cable to interface the unit was cut but the computer connector is still provided). It was removed from service in working condition and is Motorola surplus.
Re-Sale Price: Around $30,000.00.
The Main Unit's Serial Number Tag Reads:
Power Requirements: 115 VAC, 50/60 Hz
The Computer's Serial Number Tag Reads:
Serial Number: 960321RS35C / A05633098
Power Requirements: 115 VAC, 50/60 Hz
The Tencor OmniMap RS35c is a manual load, resistivity mapping four point probe system.
The OmniMap collects and analyzes sheet resistance data on various conductive layers such as implants, diffusions, epi, CVD, metals and bulk substrates.
Provides accurate and repeatable sheet resistance measurements from 5m ohms/sq to 5m ohms/sq on 2 in. (50mm) to 8 in. (200mm) wafers by uniting sophisticated modeling algorithms, advanced analysis techniques and precision electronics. Measures up to 1264 sites per wafer using standard or user-defined patterns, and displays test results in the form of contourmaps, 3-D maps, diameter scans and die maps.
For More Pictures Please Click the Following:
* Picture 2 - Back View, RS35c System
* Picture 3 - Back View, Computer
* Picture 4 - Wafer Testing Area
* Picture 5 - Front Panel, LCD Display
* Picture 6 - Front Panel, Controls
* Picture 7 - Inside Front Panel, Controls & Indicators
* Picture 8 - Inside Front Panel, Relay Section Indicators
* Picture 9 - Inside Front Panel, Current Source Section Indicators
* Picture 10 - Inside Front Panel, Volt Meter & Facilities Section Indicators
* Picture 11 - Inside Front Panel, Driver Section Indicators
* Picture 12 - Inside Front Panel, Sensor Section Indicators
* Picture 13 - Inside Front Panel, Key Pad Controls
* Picture 14 - Facilities & Computer Connections
* Picture 15 - Computer Serial Number Tag
* Picture 16 - RS35c Main Unit Serial Number Tag
